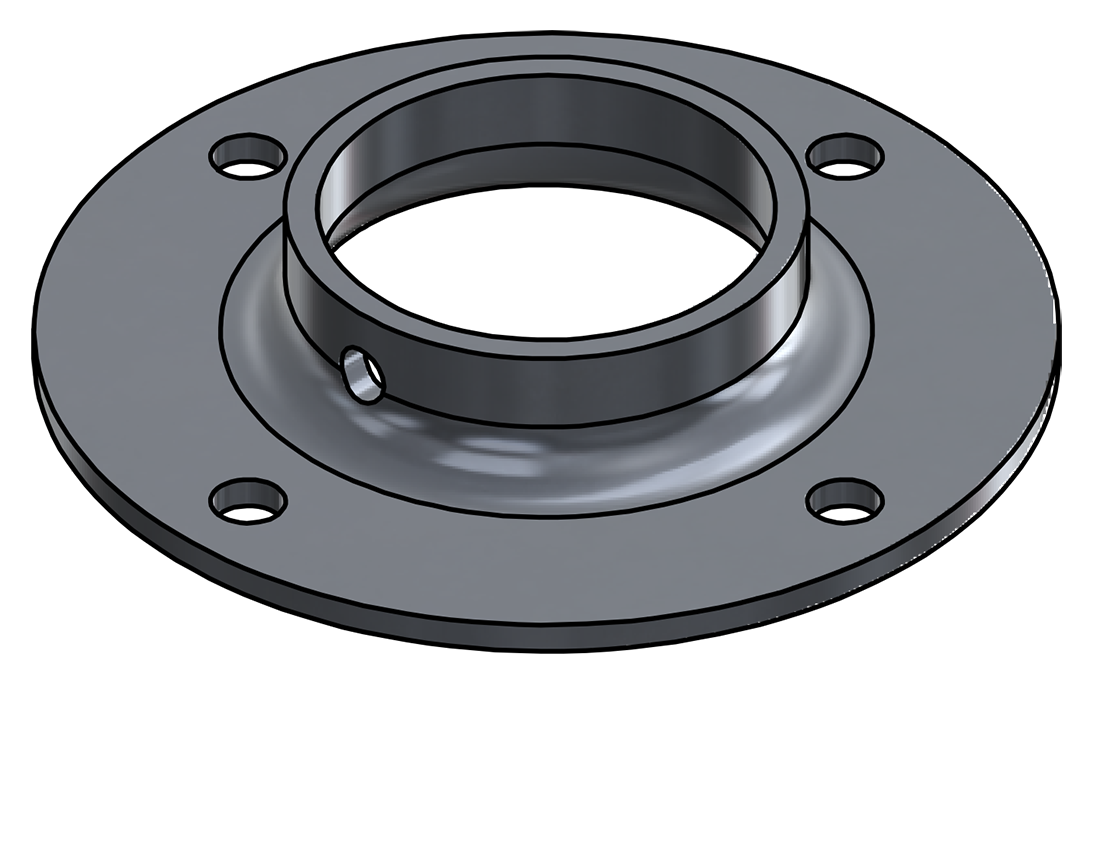

Picture of #XFF1908-AL - ALUMINUM 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1908-AL - ALUMINUM 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1908-AL - ALUMINUM 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

#XFF1908-AL - ALUMINUM 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 PIPE (1.90 O.D.) W/ (4) HOLES & SET SCREW, ALUM 3003
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Part Number: XFF1908-AL
$21.25
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$19.12$18.06$17.00

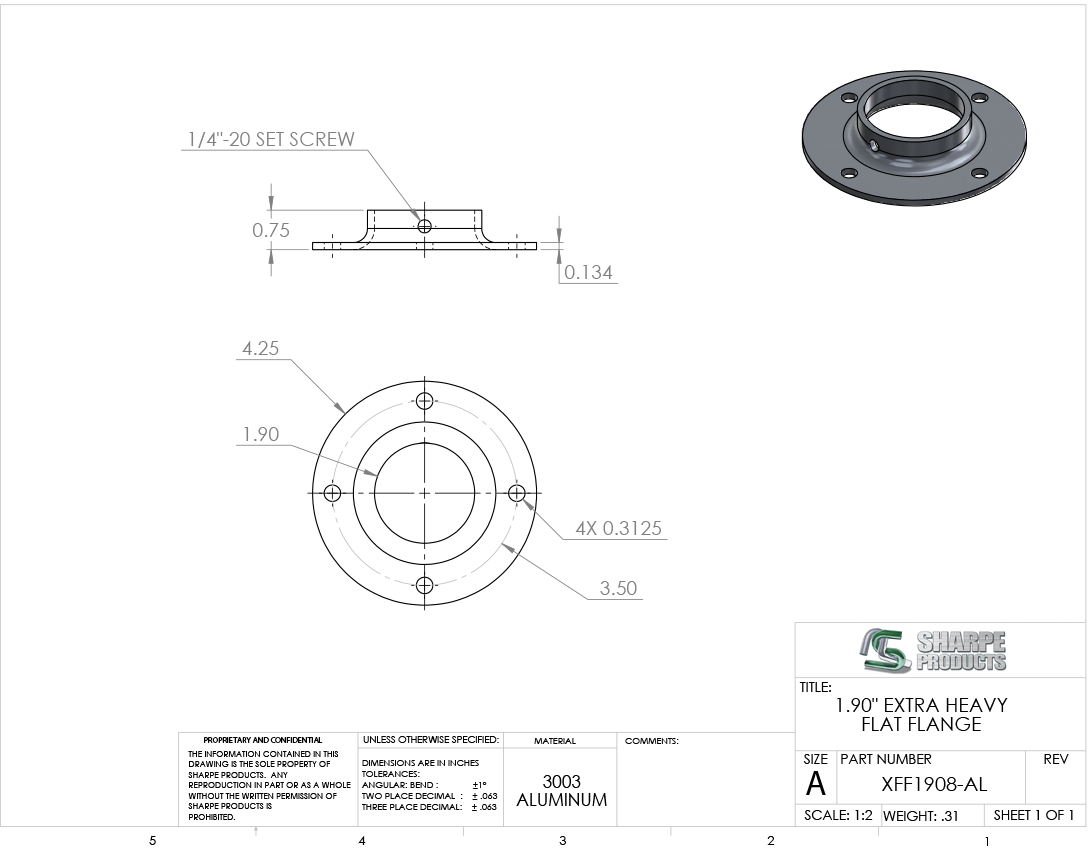

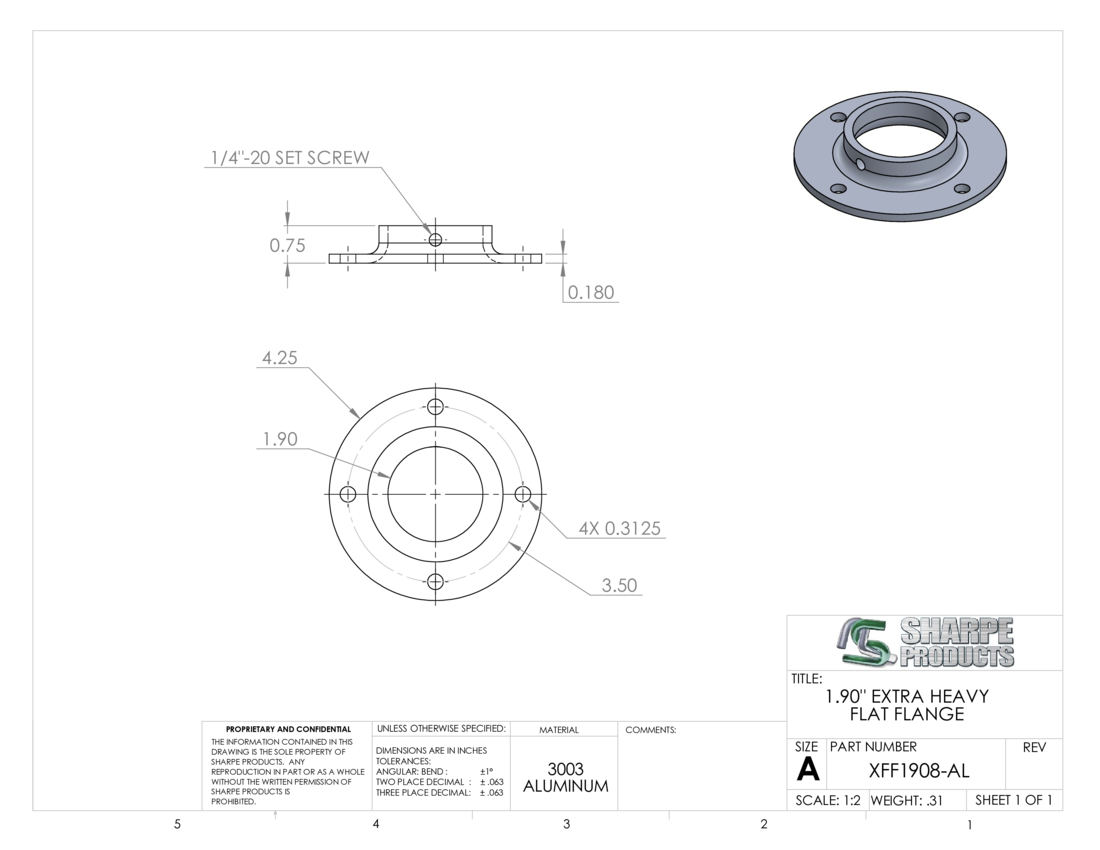

Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)1.90 in.
Pipe Size or Tube Size (A)1 1/2" PIPE
Alloy3003
Wall Thickness.187"
Wt.Ea.0.31 lb.
Mount Holes4
Set Screw1
Base Diameter (B)4.688
Height (H)0.75 in.
Bolt Circle (D)3.75 in.
