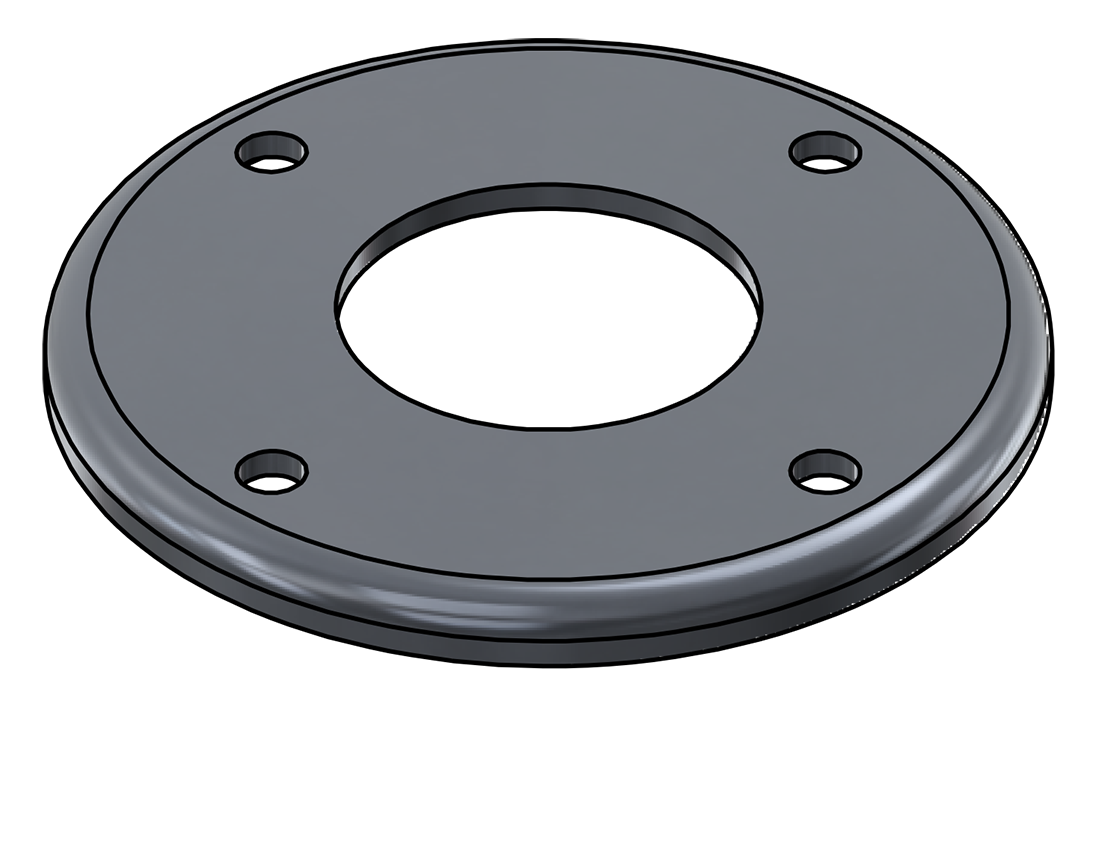

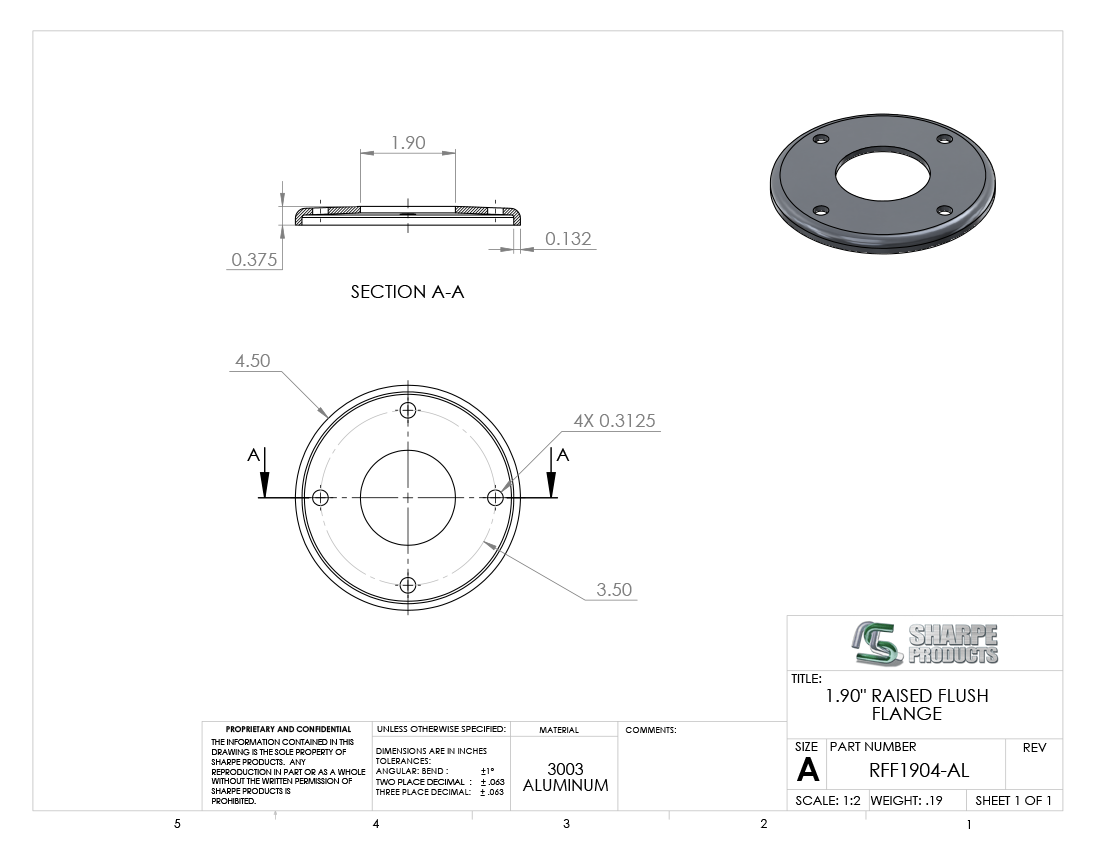

#RFF1904-AL - ALUMINUM 1 1/2" PIPE RAISED FLUSH FLANGE

RAISED FLUSH FLANGE, 1 1/2 PIPE (1.90 O.D.) W/ (4) HOLES ALUM 3003
Availability: 18 in stock
Part Number: RFF1904-AL
Call for price
Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)1.90 in.
Pipe Size or Tube Size (A)1 1/2" PIPE
Alloy3003
Wall Thickness.132"
Wt.Ea.0.21 lb.
Mount Holes4
Base Diameter (B)4.5
Bolt Circle (D)3.5 in.
