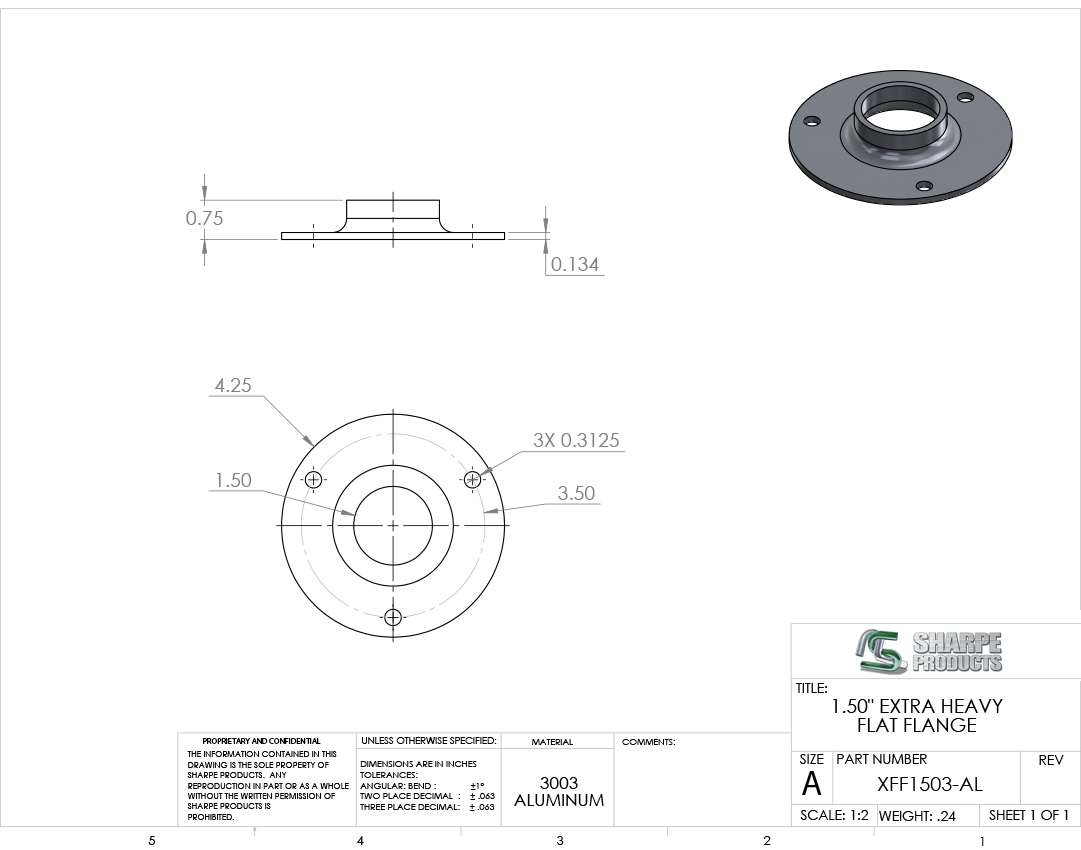

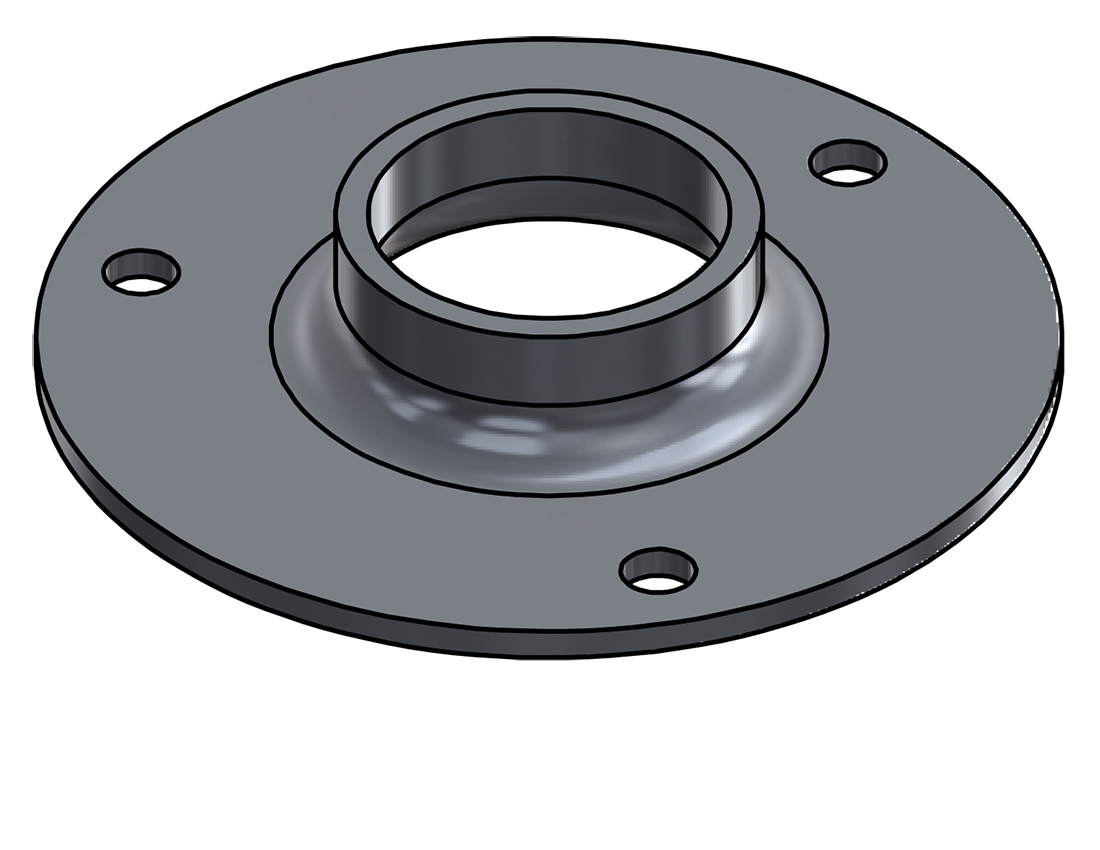

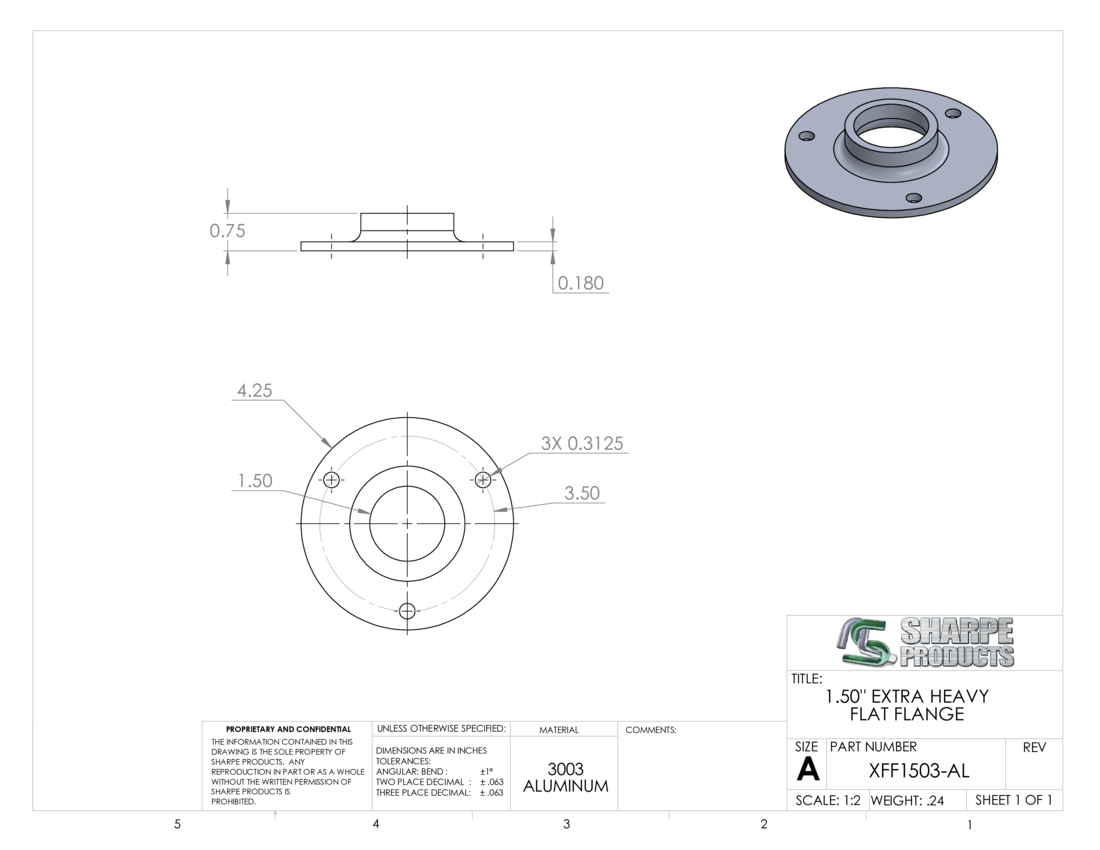

Picture of #XFF1503-AL - ALUMINUM 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1503-AL - ALUMINUM 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE Picture of #XFF1503-AL - ALUMINUM 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

#XFF1503-AL - ALUMINUM 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 .D. W/ (3) HOLES, ALUM 3003
Availability: 10 in stock
Part Number: XFF1503-AL
$22.41
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$20.17$19.05$17.93
Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)1.50 in.
Pipe Size or Tube Size (A)1 1/2" TUBE
Alloy3003
Wall Thickness.187"
Wt.Ea.0.24 lb.
Mount Holes3
Set Screw0
Base Diameter (B)4.25
Height (H)0.75 in.
Bolt Circle (D)3.5 in.
