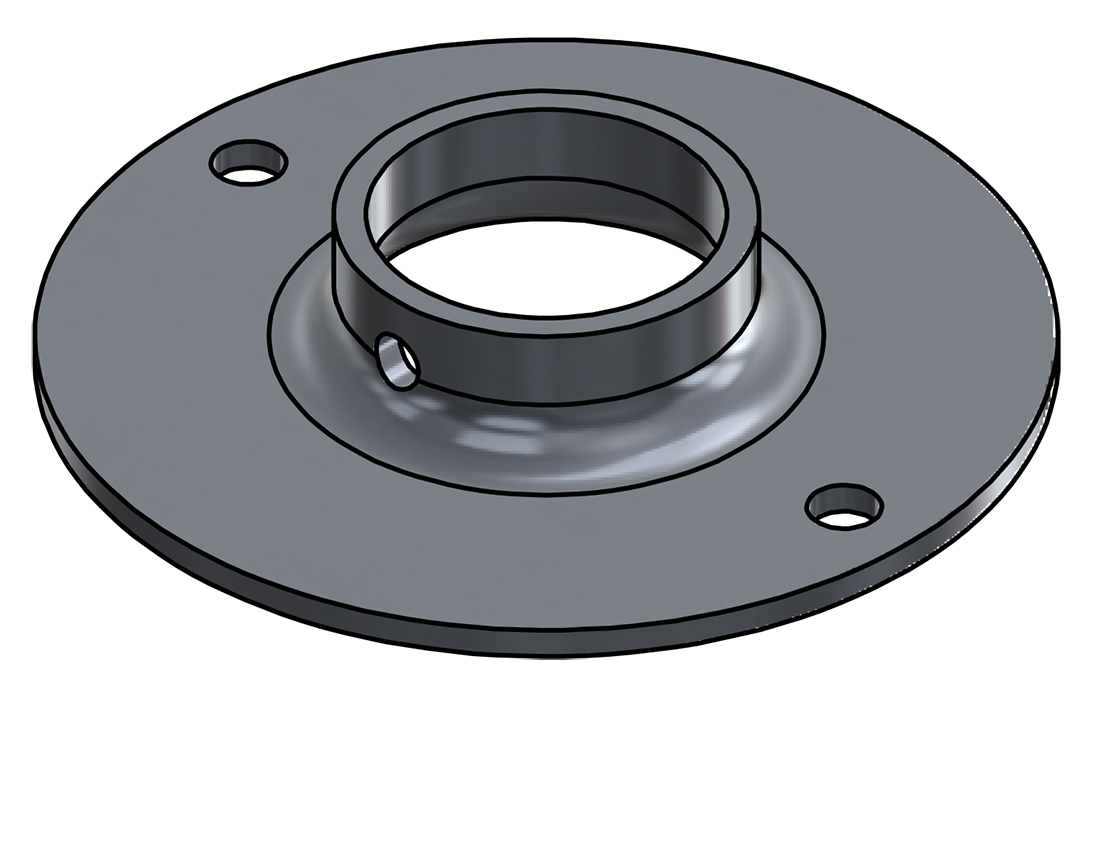

#XFF1506-AL - ALUMINUM 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 O.D. W/ (2) HOLES W/ SET SCREW, ALUM 3003
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Part Number: XFF1506-AL
$28.28
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$25.45$24.04$22.62

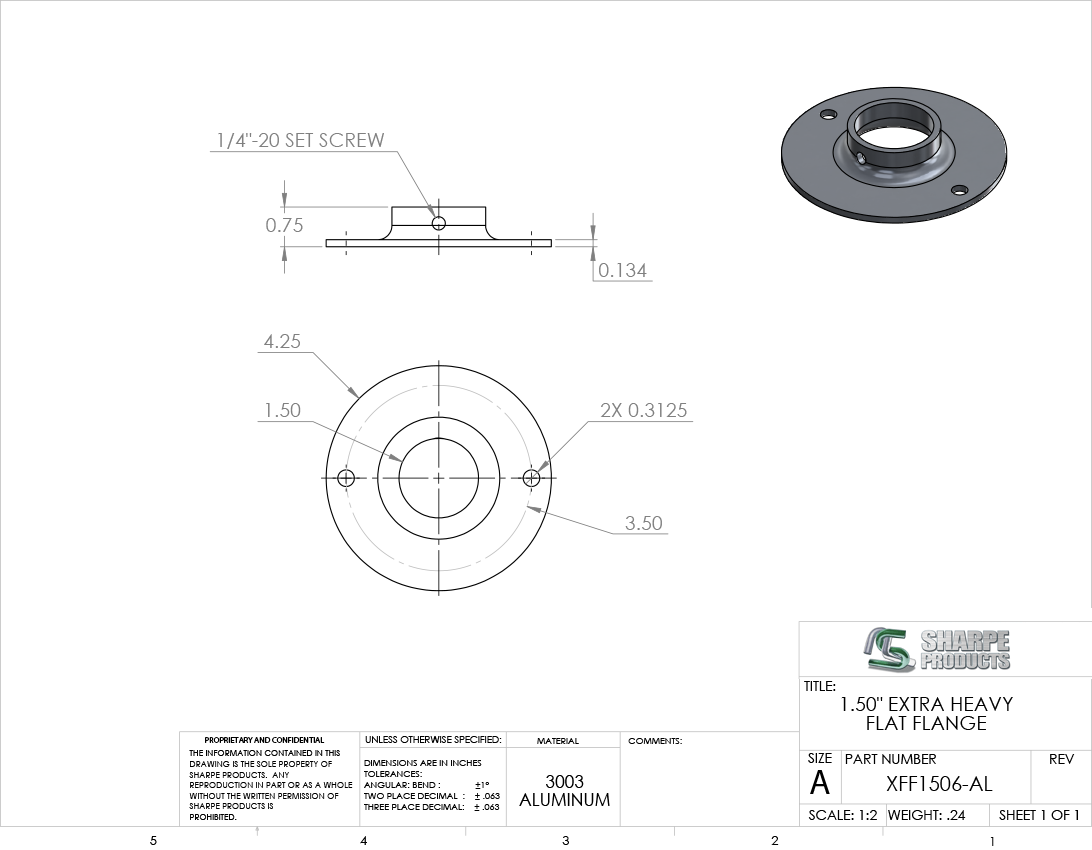

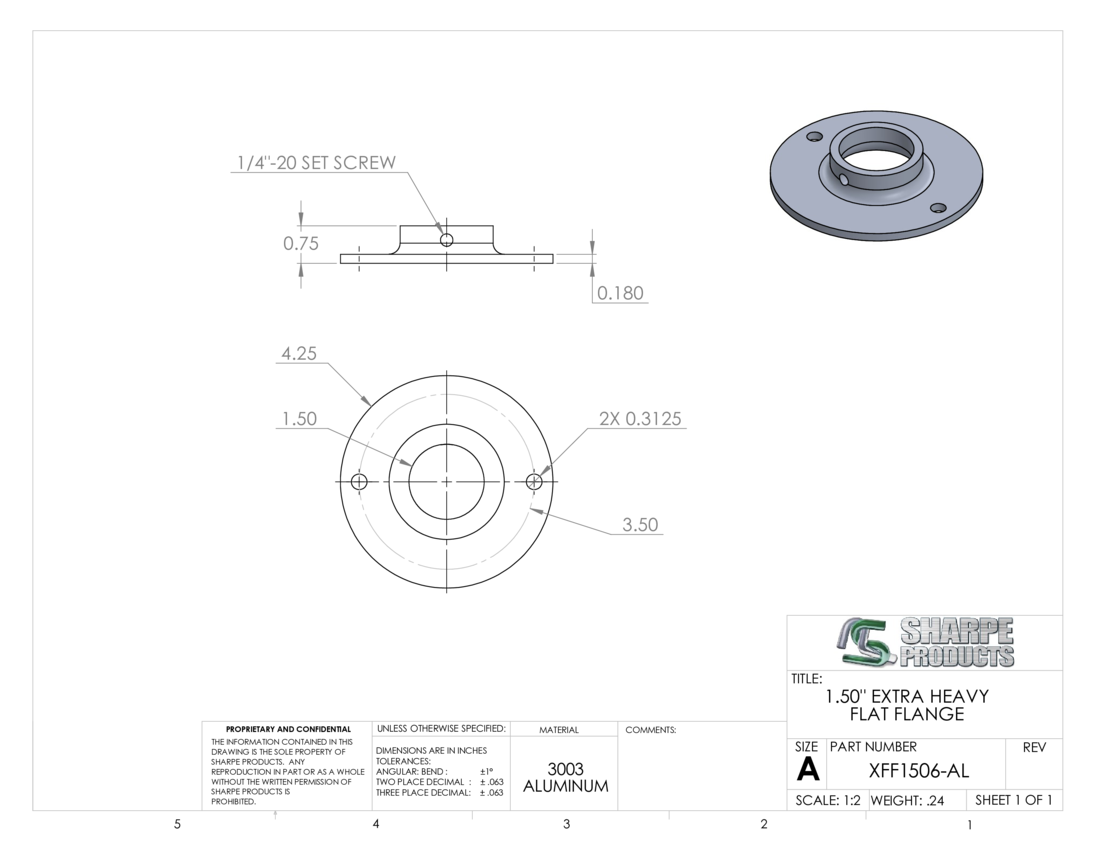

Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)1.50 in.
Pipe Size or Tube Size (A)1 1/2" TUBE
Alloy3003
Wall Thickness.187"
Wt.Ea.0.24 lb.
Mount Holes2
Set Screw1
Base Diameter (B)4.25
Height (H)0.75 in.
Bolt Circle (D)3.5 in.
