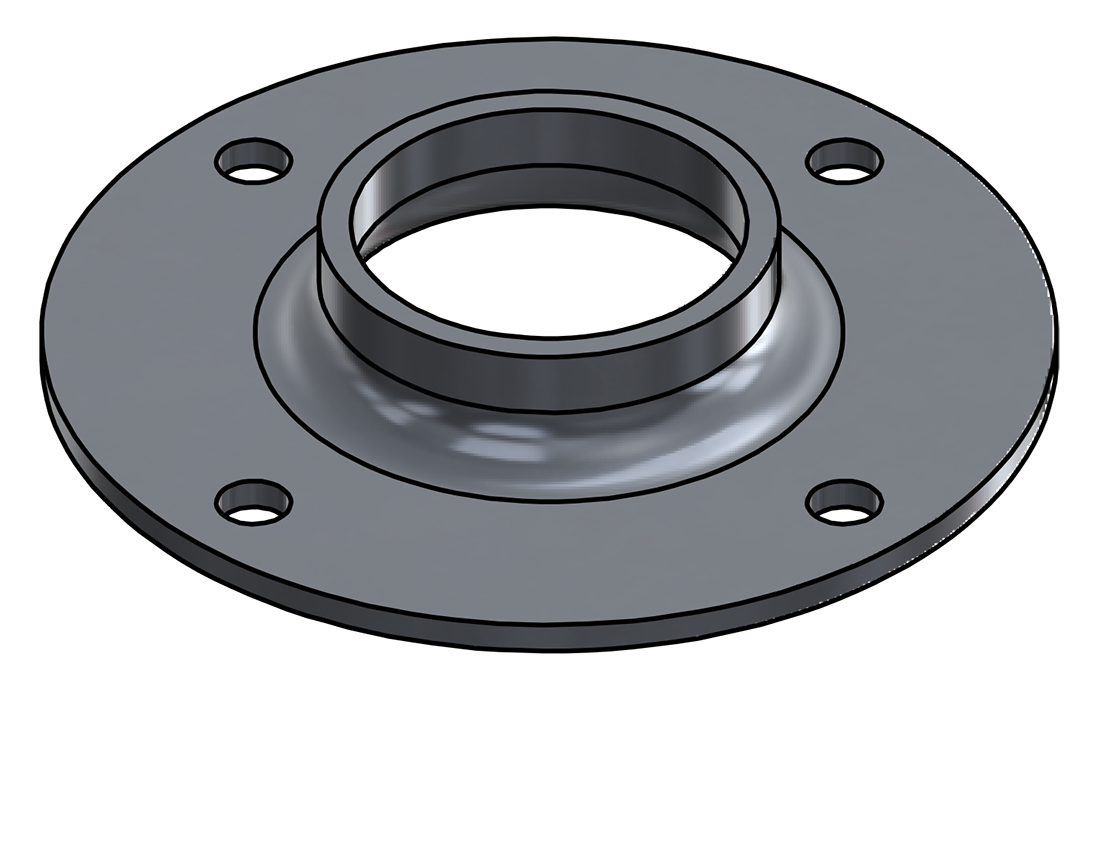

Picture of #XFF1664-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1664-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1664-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE

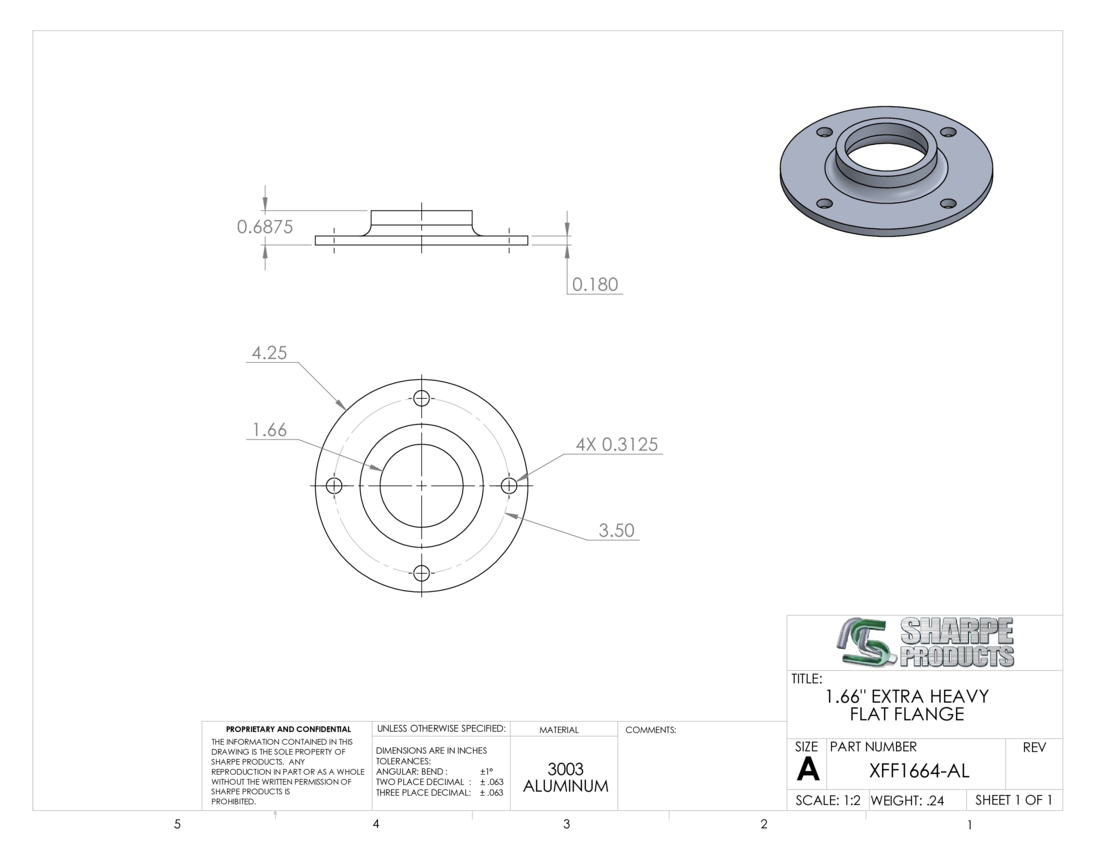

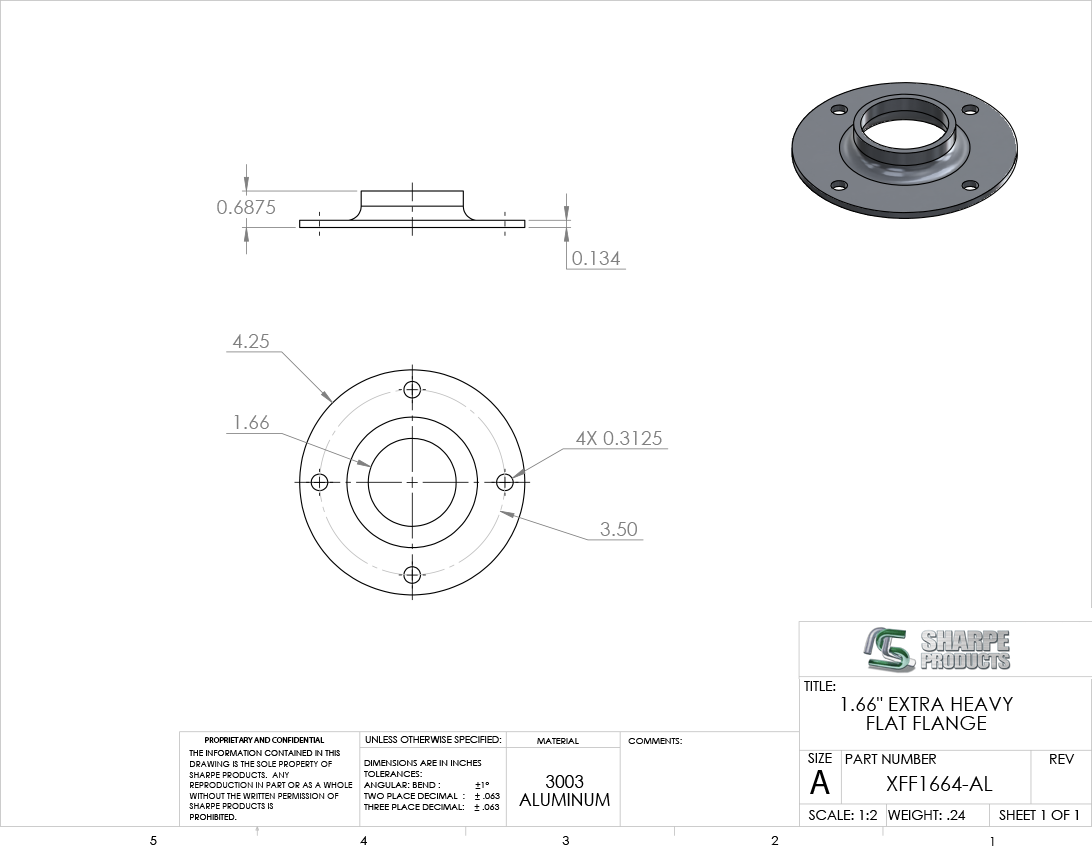

#XFF1664-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/4 PIPE (1.66 OD) W/ (4) HOLES, ALUM 3003
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Part Number: XFF1664-AL
$25.52
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$22.97$21.69$20.42
Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)1.66 in.
Pipe Size or Tube Size (A)1 1/4" PIPE
Alloy3003
Wall Thickness.187"
Wt.Ea.0.24 lb.
Mount Holes4
Set Screw0
Base Diameter (B)4.125
Height (H)0.688 in.
Bolt Circle (D)3.25 in.
