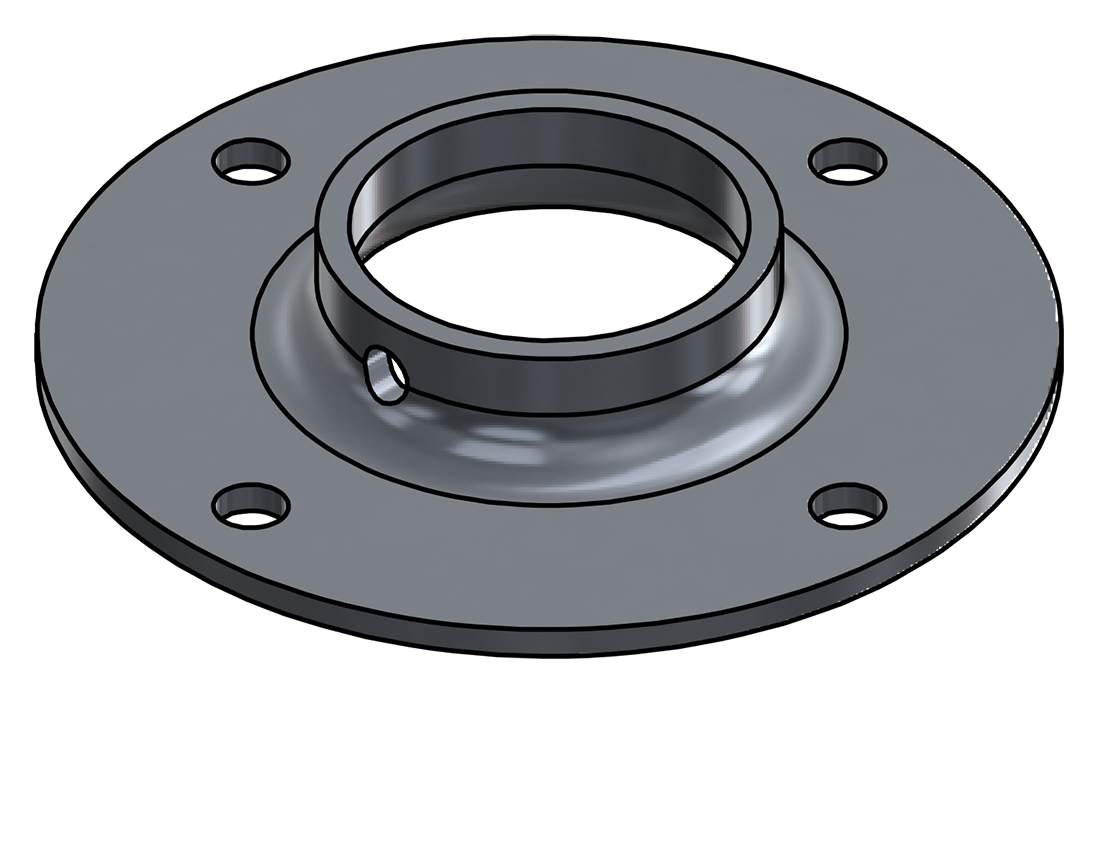

Picture of #XFF1668-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1668-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1668-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE

#XFF1668-AL - ALUMINUM 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/4 PIPE (1.66 O.D.) W/ (4) HOLES & SET SCREW, ALUM 3003
Availability: 6 in stock
Part Number: XFF1668-AL
$31.38
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$28.24$26.67$25.10
Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)1.66 in.
Pipe Size or Tube Size (A)1 1/4" PIPE
Alloy3003
Wall Thickness.187"
Wt.Ea.0.24 lb.
Mount Holes4
Set Screw1
Base Diameter (B)4.125
Height (H)0.688 in.
Bolt Circle (D)3.25 in.
