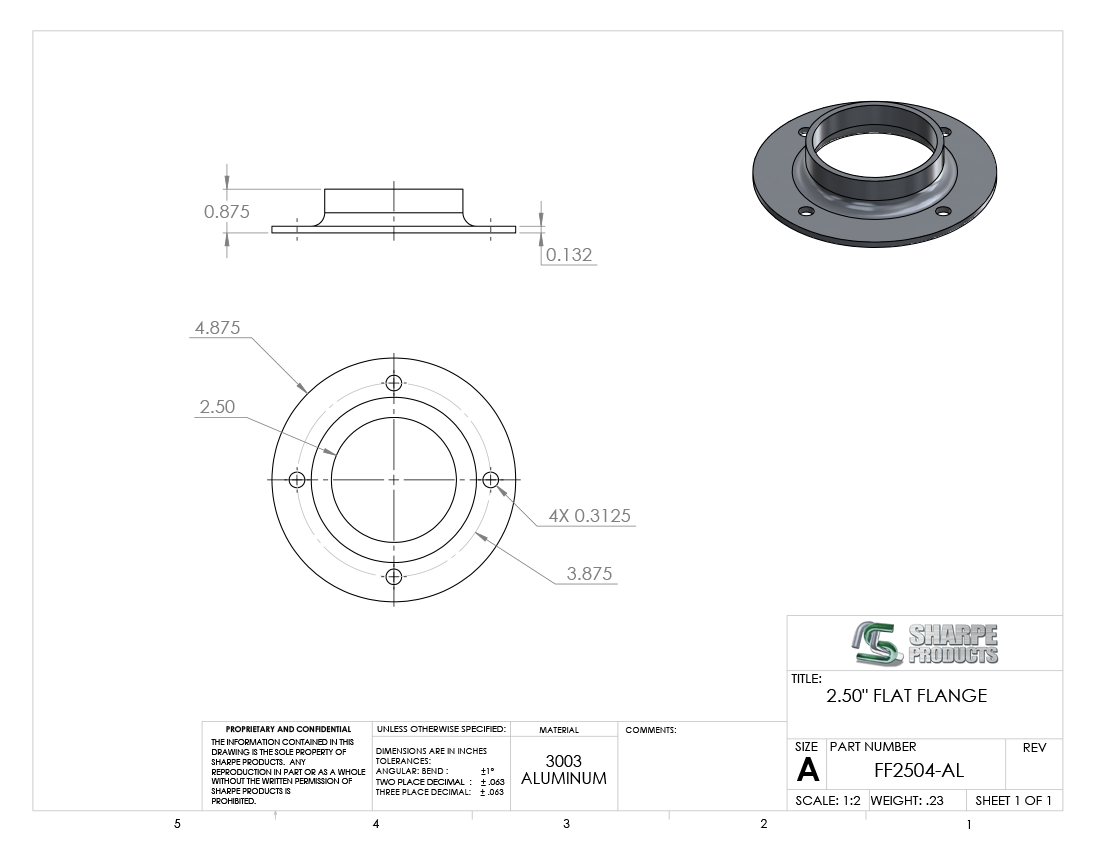

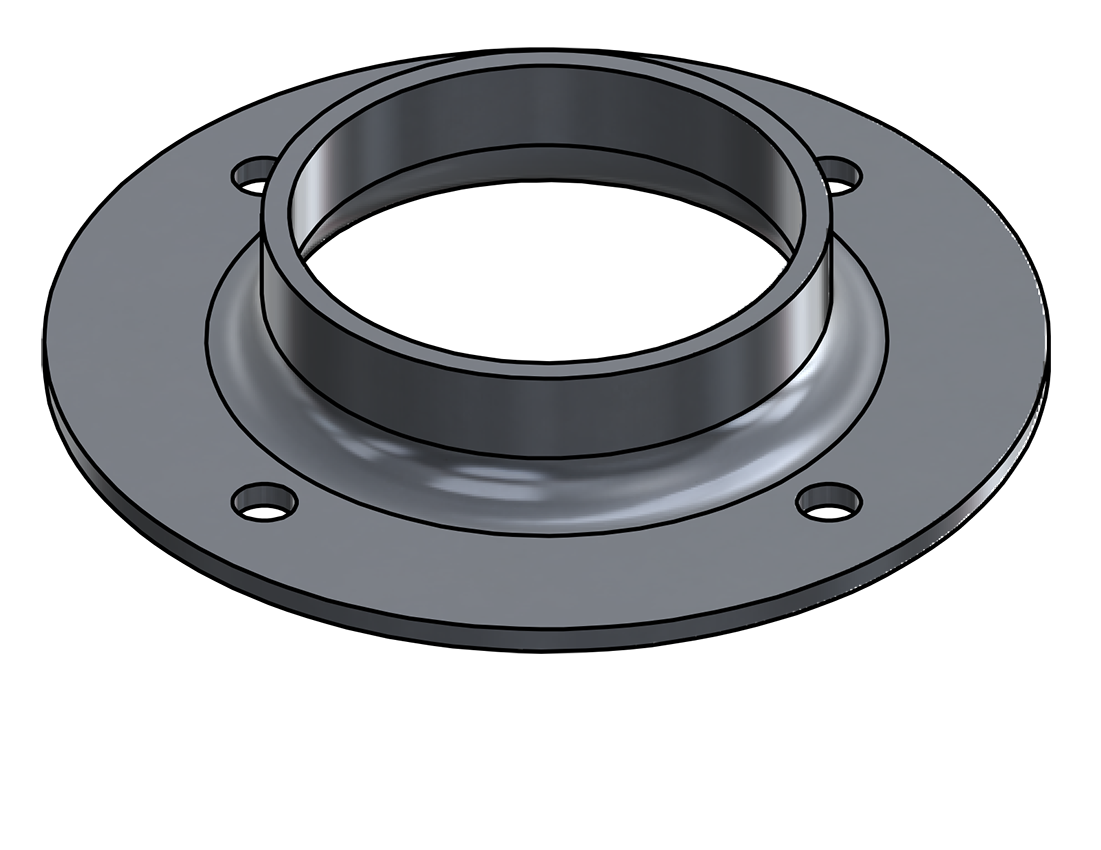

#FF2504-AL - ALUMINUM 2 1/2" TUBE FLAT FLANGE

FLAT FLANGE, 2 1/2 O.D. W/ 4 HOLES, ALUM 3003
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Part Number: FF2504-AL
Call for price
Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)2.5 in.
Pipe Size or Tube Size (A)2 1/2" TUBE
Alloy3003
Wall Thickness0.132
Wt.Ea.0.23 lb.
Mount Holes4
Set Screw0
Base Diameter (B)4.875
Height (H)0.875 in.
Bolt Circle (D)3.875 in.
