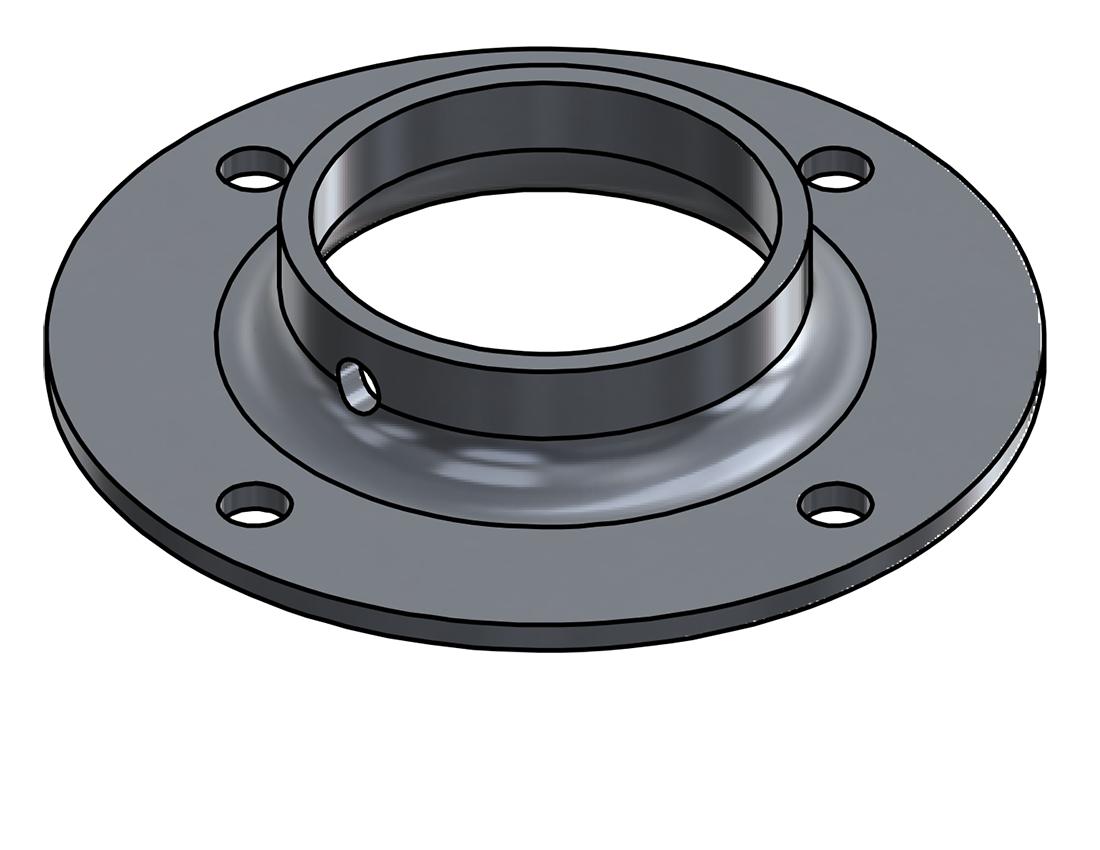

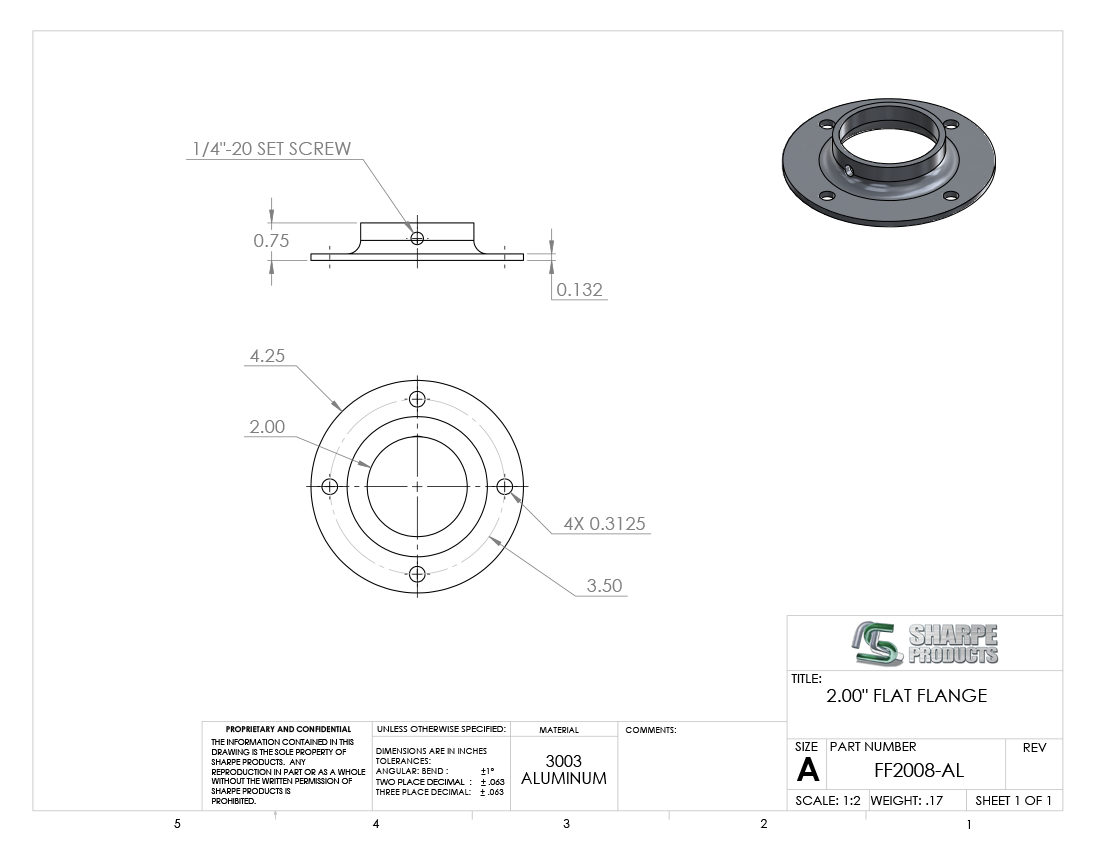

Picture of #FF2008-AL - ALUMINUM 2" TUBE FLAT FLANGE
Picture of #FF2008-AL - ALUMINUM 2" TUBE FLAT FLANGE Picture of #FF2008-AL - ALUMINUM 2" TUBE FLAT FLANGE

#FF2008-AL - ALUMINUM 2" TUBE FLAT FLANGE

FLAT FLANGE, 2 O.D.W/ (4) HOLES, SET SCREW, ALUM 3003
Availability: 27 in stock
Part Number: FF2008-AL
Call for price
Product specifications
Attribute nameAttribute value
Material TypeAluminum
Outside Diameter (O.D.)2 in.
Pipe Size or Tube Size (A)2" TUBE
Alloy3003
Wall Thickness0.132
Wt.Ea.0.17 lb.
Mount Holes4
Set Screw1
Base Diameter (B)4.25
Height (H)0.75 in.
Bolt Circle (D)3.5 in.
