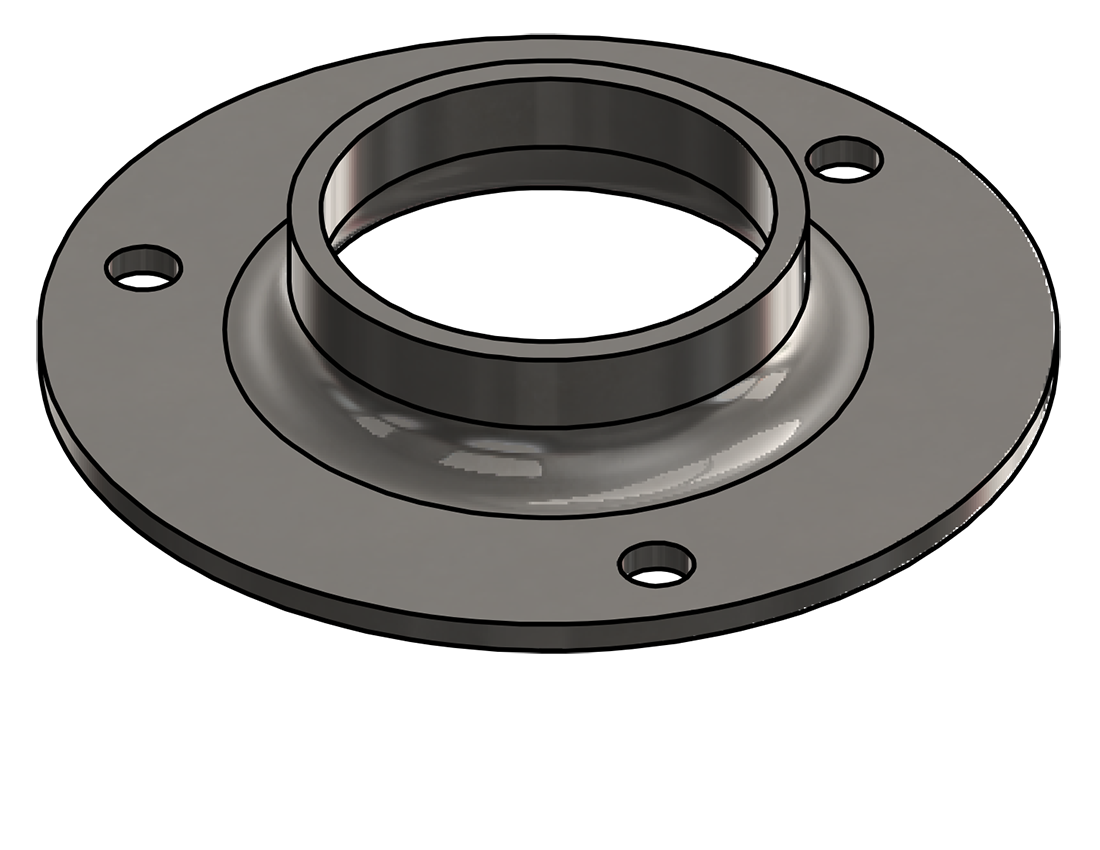

Picture of #XFF1903-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1903-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1903-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

#XFF1903-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 IPE (1.90 O.D.) W/ (3) HOLES, S/S 304
Availability: 14 in stock
Part Number: XFF1903-SS
$17.50
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$15.75$14.88$14.00
Product specifications
Attribute nameAttribute value
Material TypeStainless Steel
Outside Diameter (O.D.)1.90 in.
Pipe Size or Tube Size (A)1 1/2" PIPE
Alloy304
Wall Thickness.187"
Wt.Ea.0.8 lb.
Mount Holes3
Set Screw0
Base Diameter (B)4.688
Height (H)0.75 in.
Bolt Circle (D)3.75 in.
