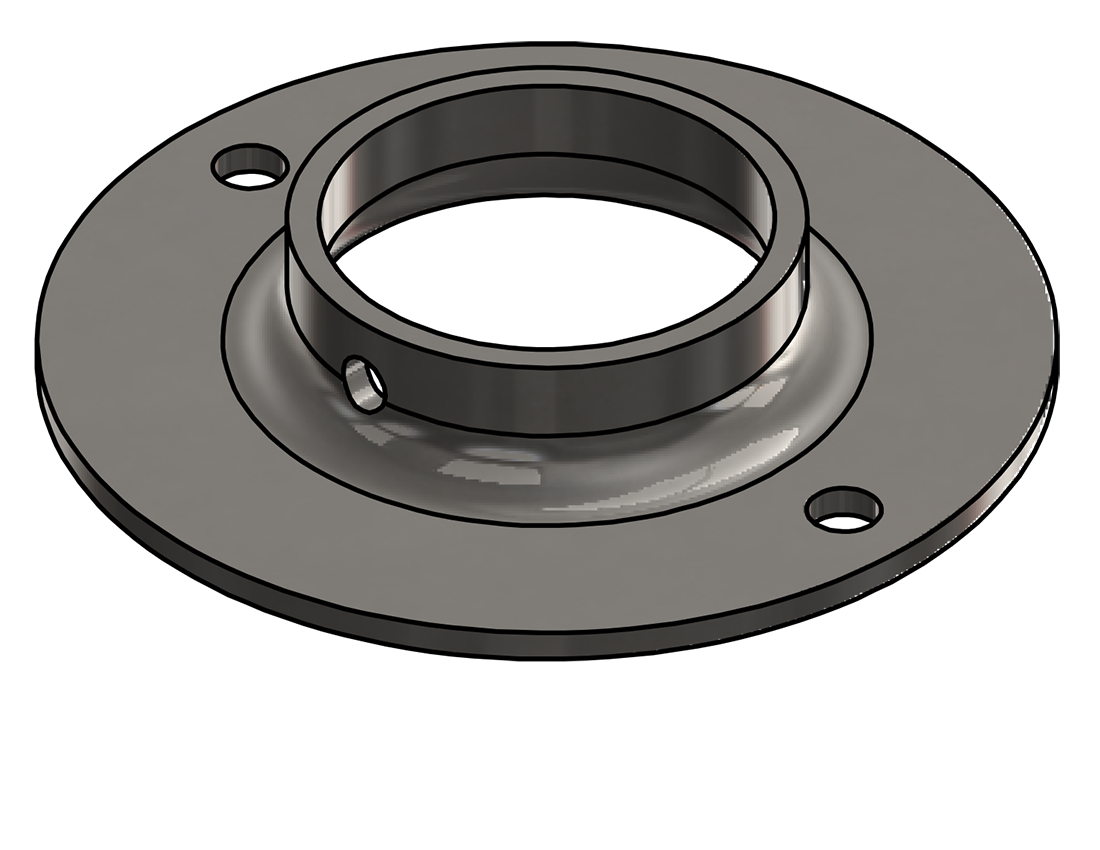

Picture of #XFF1906-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1906-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1906-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

#XFF1906-SS - STAINLESS STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 PE (1.9 OD) W/ (2) HOLES & SCREW, S/S 304
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Part Number: XFF1906-SS
Call for price

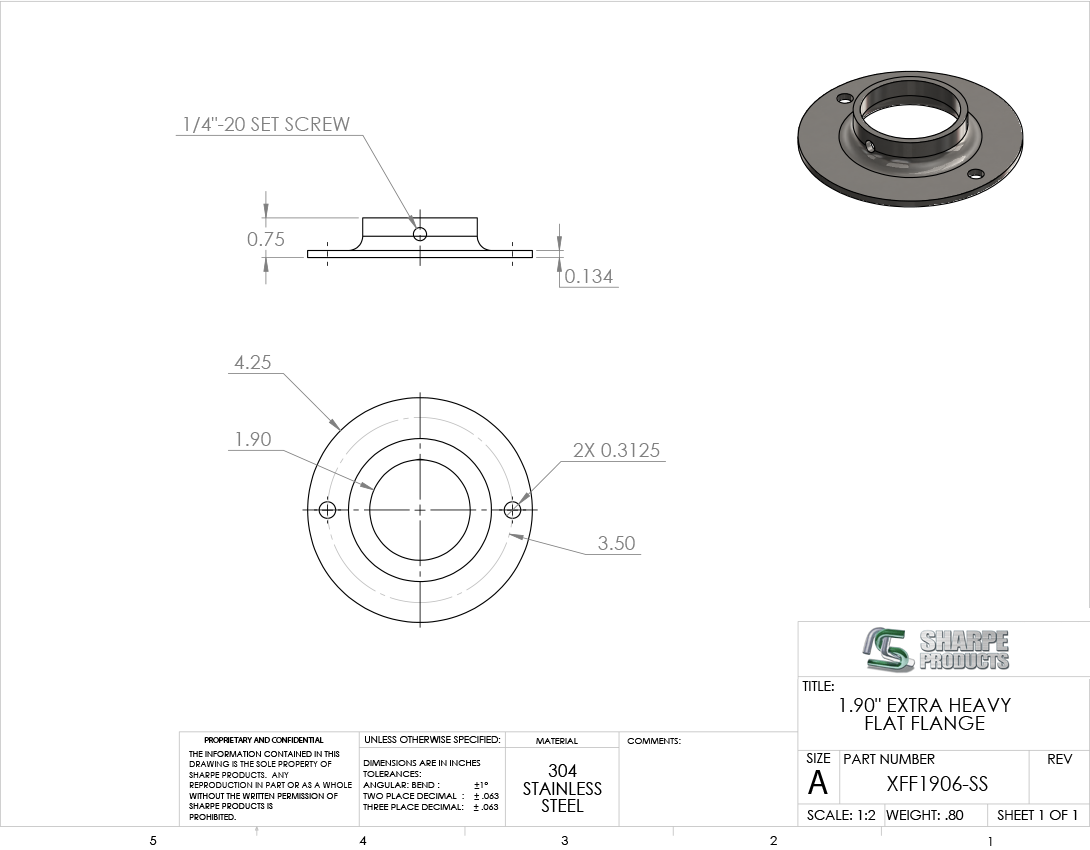

Product specifications
Attribute nameAttribute value
Material TypeStainless Steel
Outside Diameter (O.D.)1.90 in.
Pipe Size or Tube Size (A)1 1/2" PIPE
Alloy304
Wall Thickness.187"
Wt.Ea.0.8 lb.
Mount Holes2
Set Screw1
Base Diameter (B)4.688
Height (H)0.75 in.
Bolt Circle (D)3.75 in.
