Picture of #XFF1507-SS - STAINLESS STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1507-SS - STAINLESS STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE Picture of #XFF1507-SS - STAINLESS STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

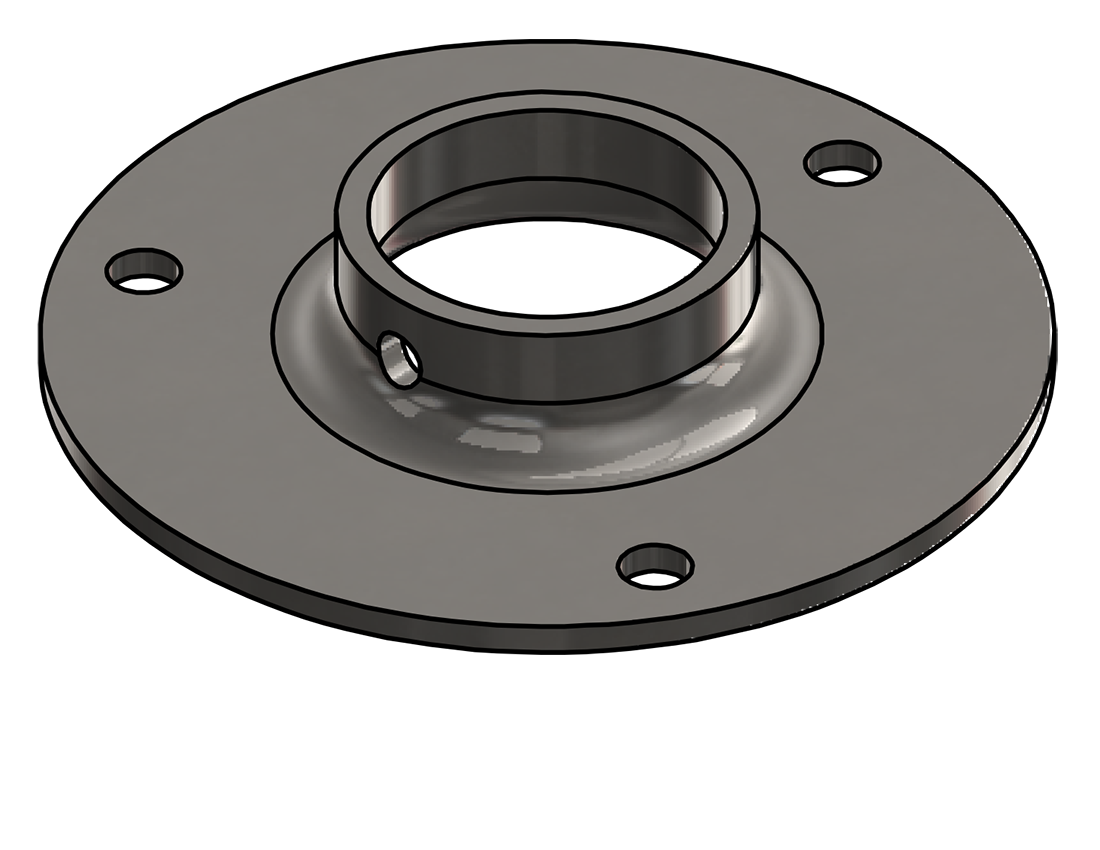

#XFF1507-SS - STAINLESS STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 O.D. W/ (3) HOLES & SET SCREW, S/S 304
Availability: 2 in stock
Part Number: XFF1507-SS
$47.77
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$42.99$40.60$38.22

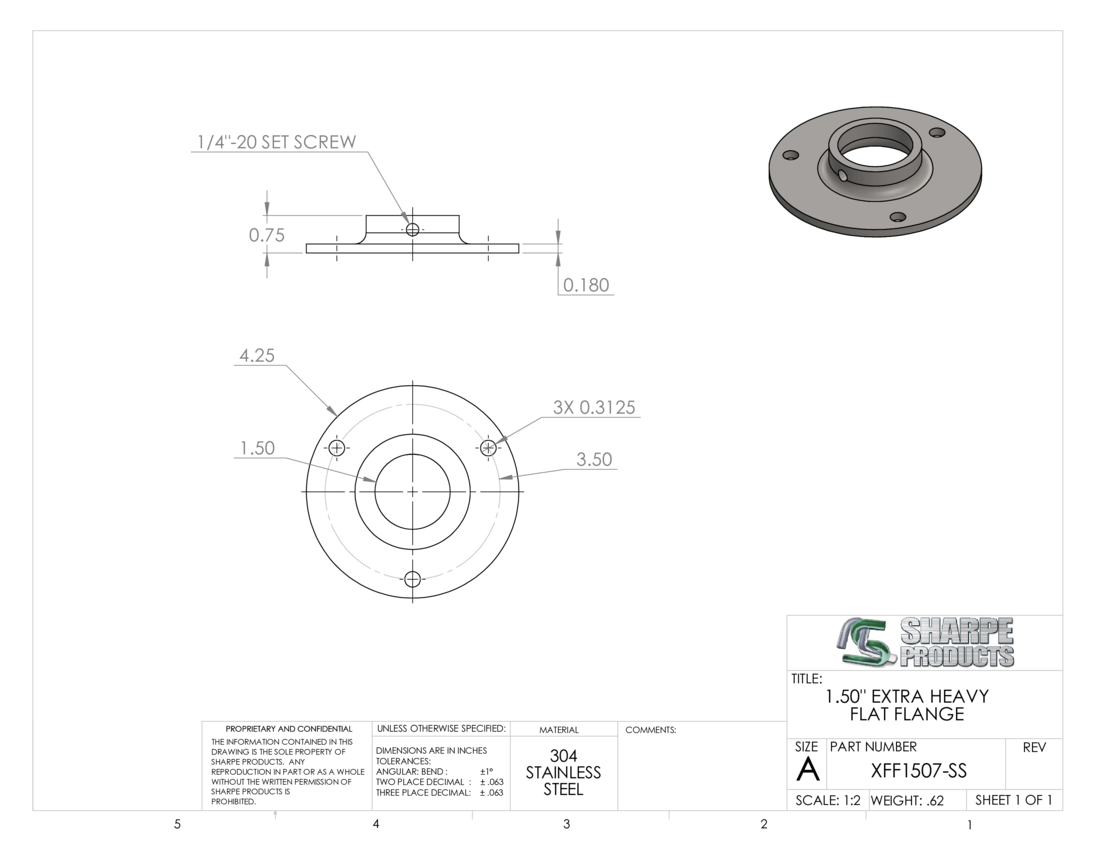

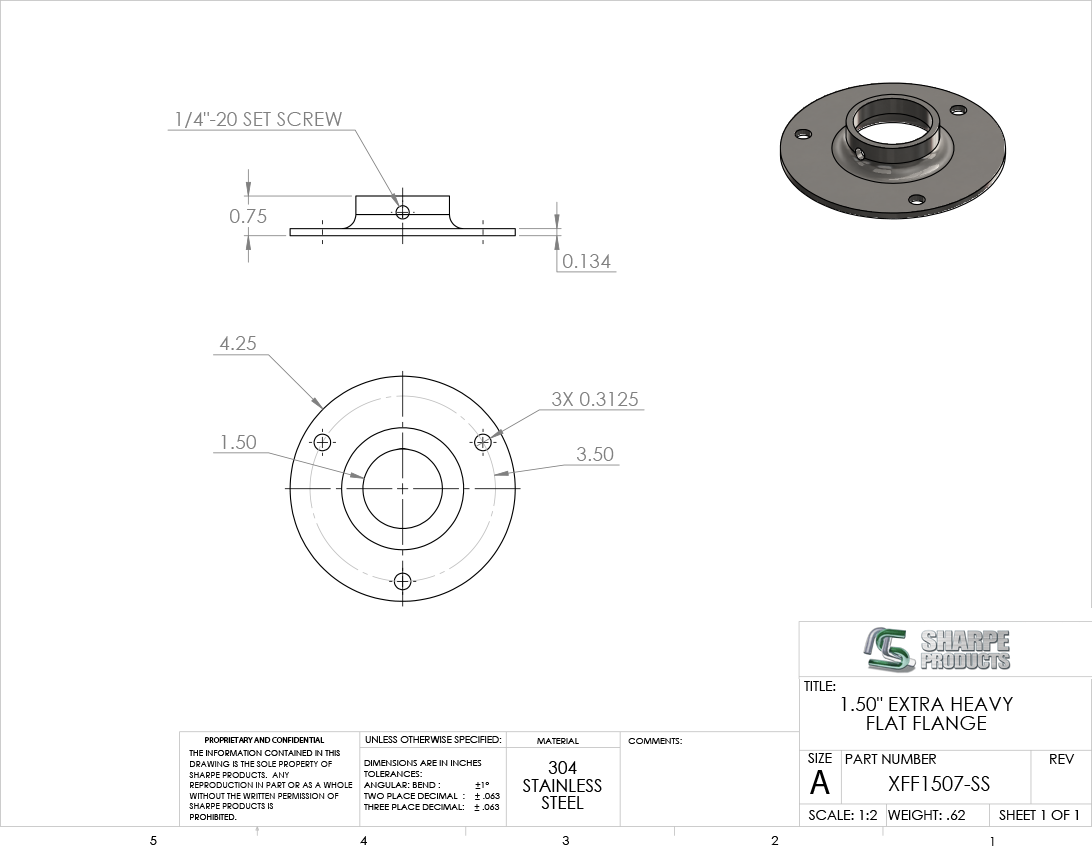

Product specifications
Attribute nameAttribute value
Material TypeStainless Steel
Outside Diameter (O.D.)1.50 in.
Pipe Size or Tube Size (A)1 1/2" TUBE
Alloy304
Wall Thickness.187"
Wt.Ea.0.62 lb.
Mount Holes3
Set Screw1
Base Diameter (B)4.25
Height (H)0.75 in.
Bolt Circle (D)3.5 in.
