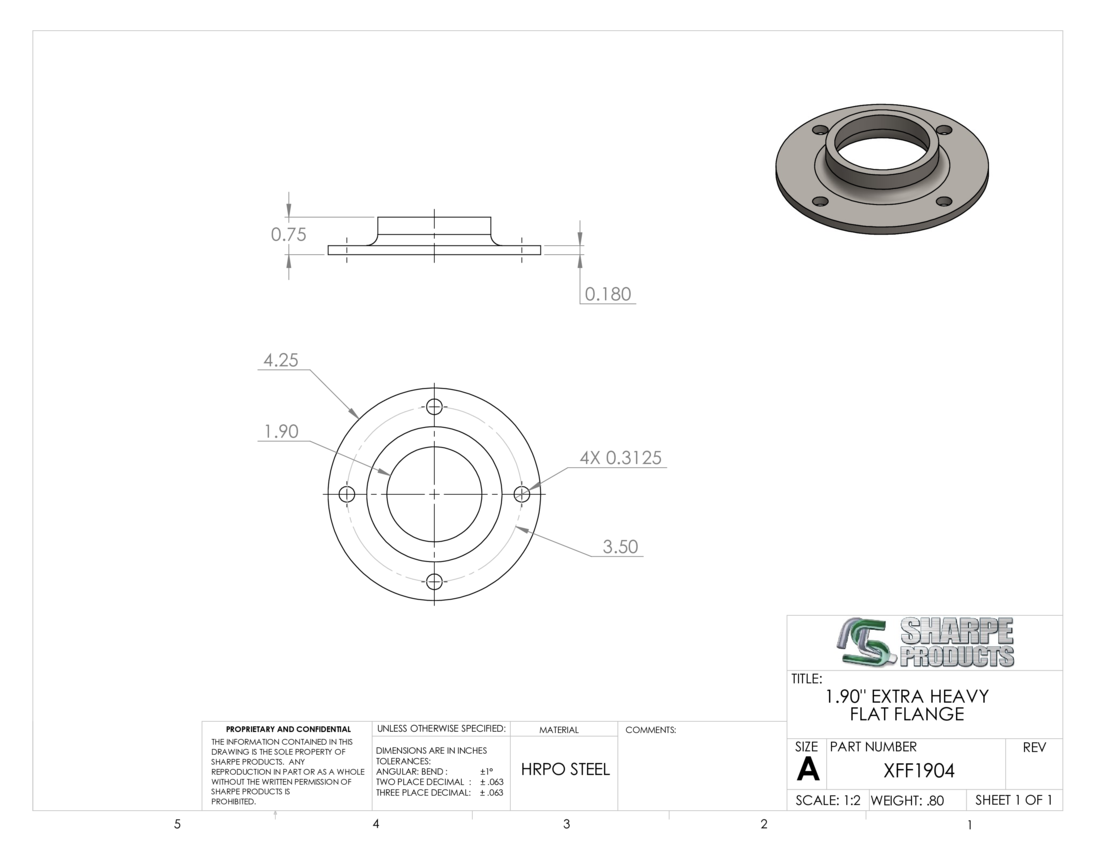

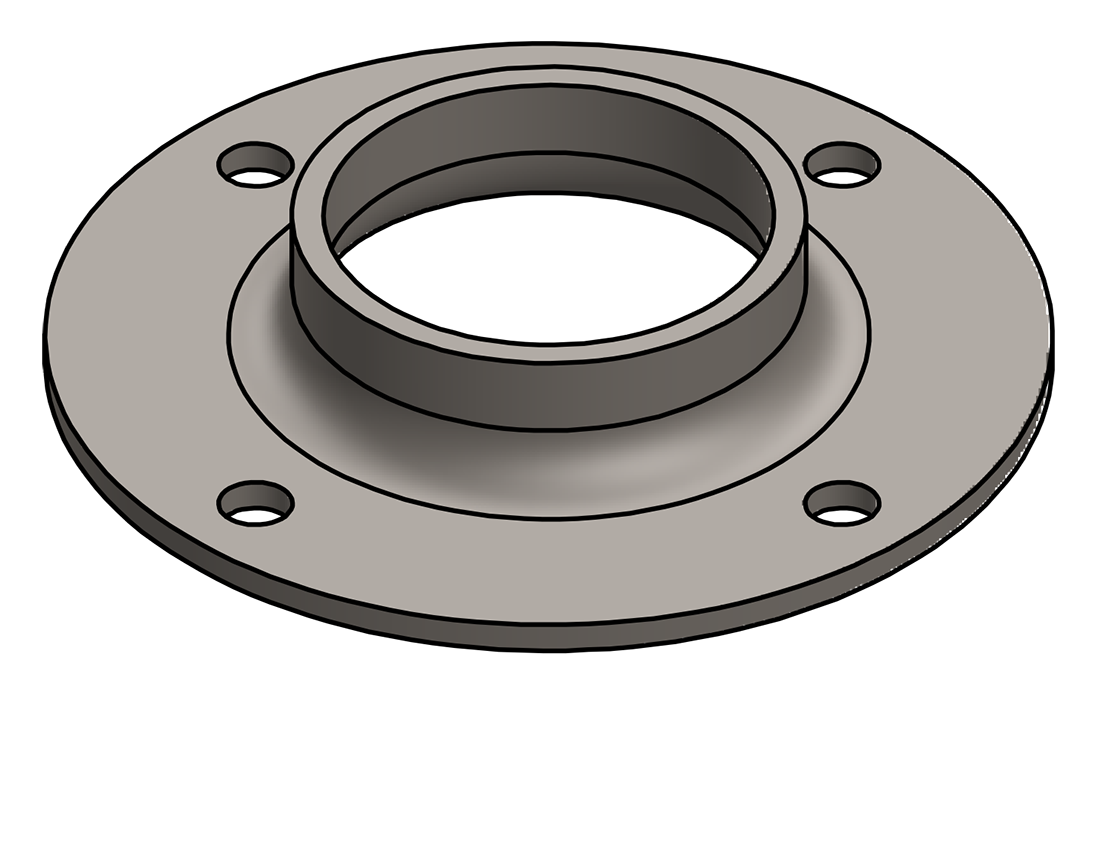

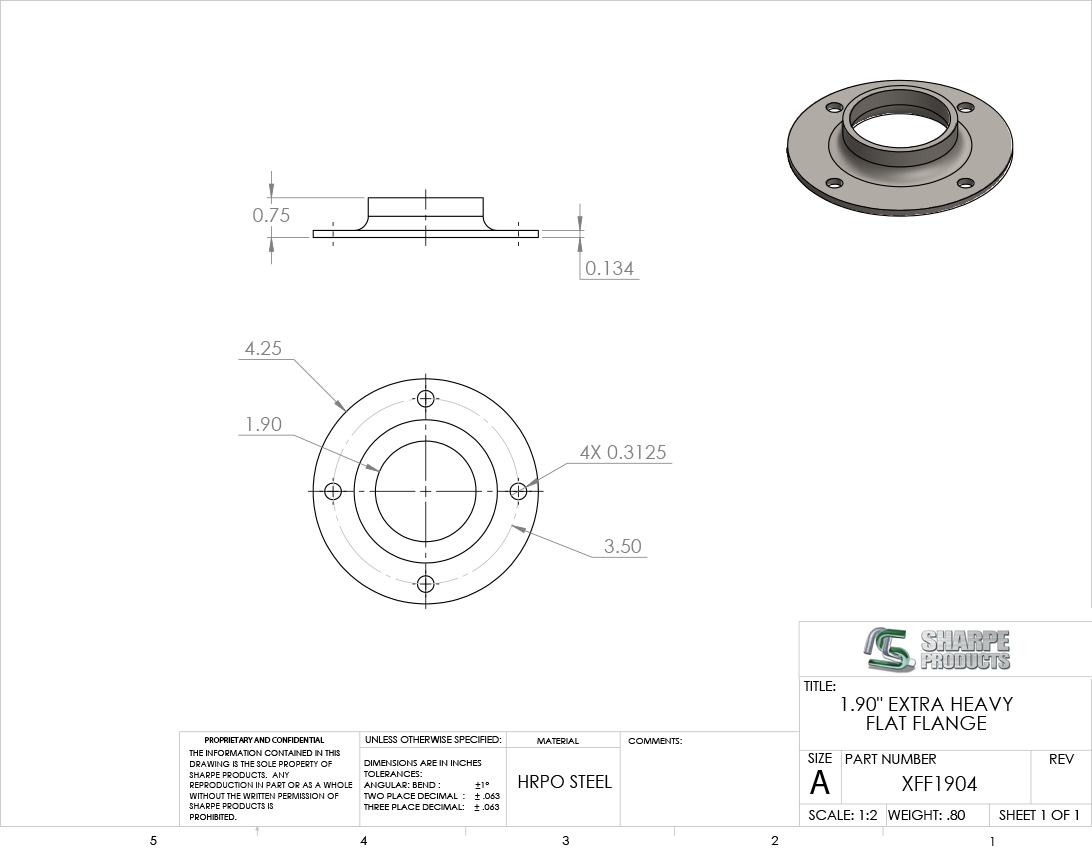

Picture of #XFF1904 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1904 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1904 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

#XFF1904 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 PIPE (1.90 O.D.) W/ (4) HOLES, STEEL
Availability: 23 in stock
Part Number: XFF1904
$8.48
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$7.63$7.21$6.78
Product specifications
Attribute nameAttribute value
Material TypeSteel
Outside Diameter (O.D.)1.90 in.
Pipe Size or Tube Size (A)1 1/2" PIPE
Wt.Ea.0.8 lb.
Mount Holes4
Set Screw0
Base Diameter (B)4.688
Height (H)0.75 in.
Bolt Circle (D)3.75 in.
Wall Thickness7 Ga.
