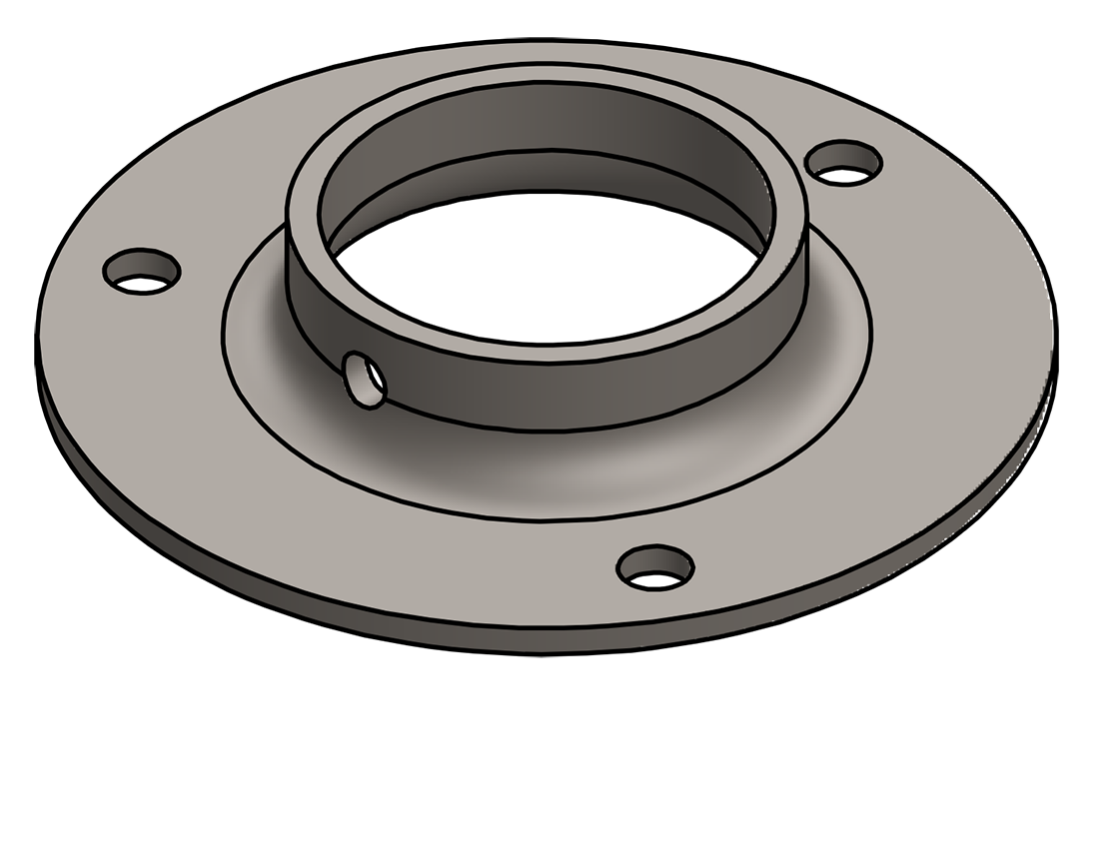

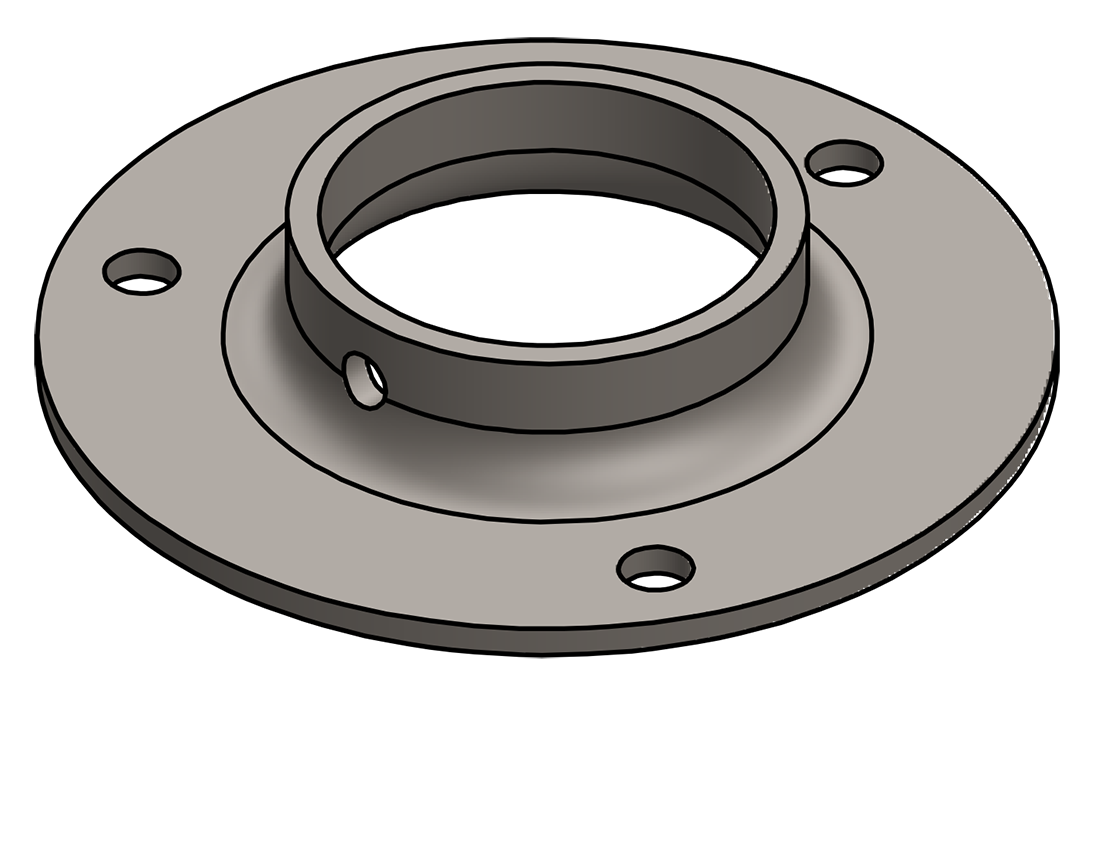

Picture of #XFF1907 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1907 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1907 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

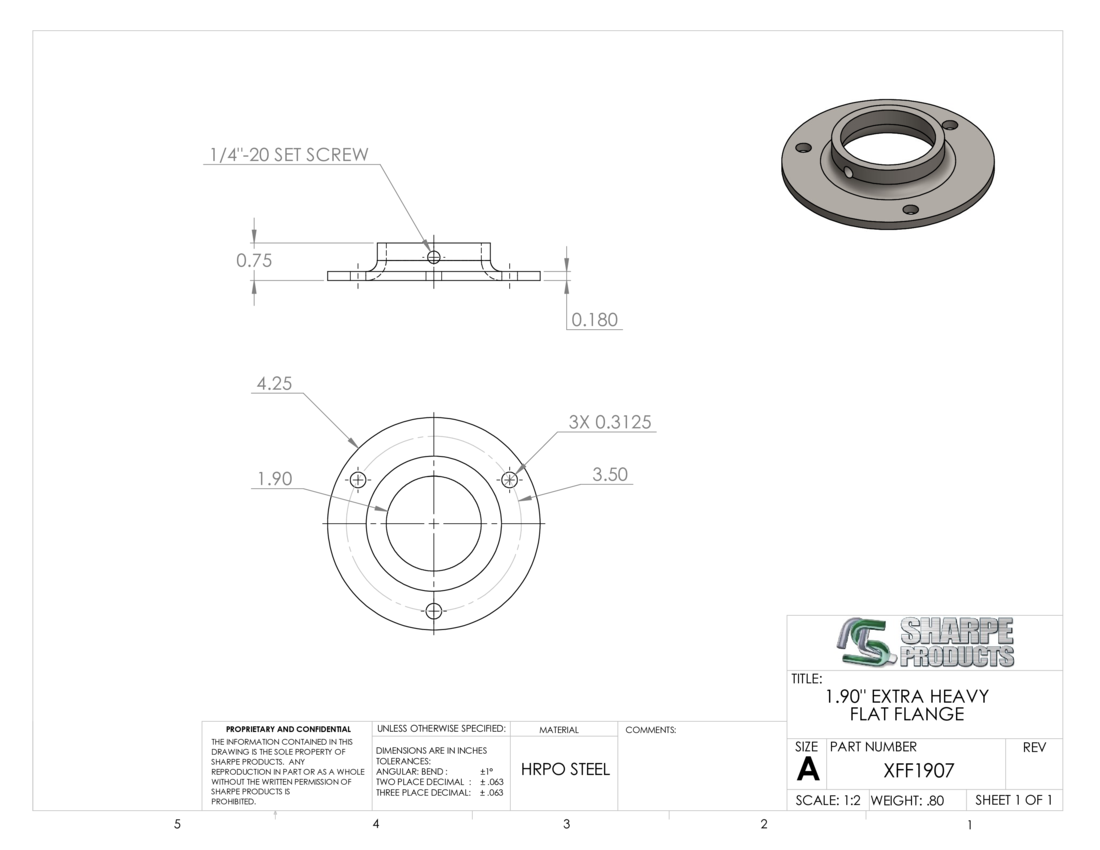

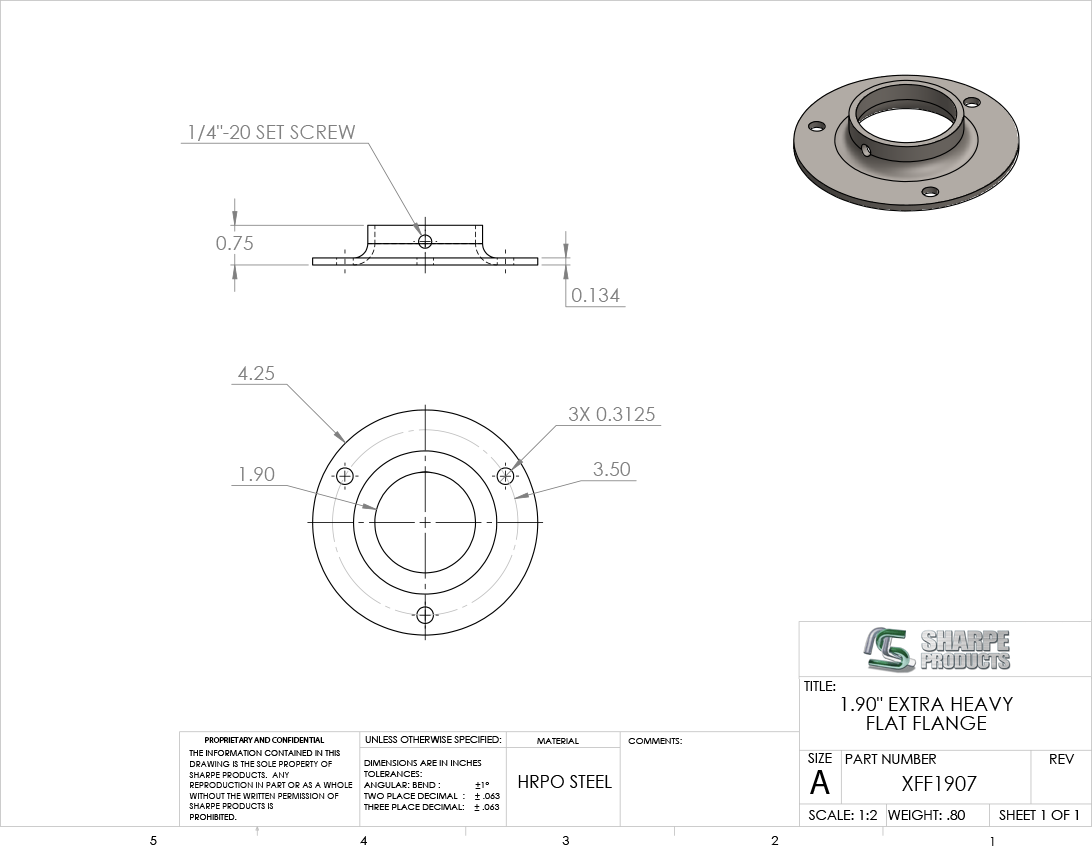

#XFF1907 - STEEL 1-1/2" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 PIPE (1.90 O.D.) W/ (3) HOLES SET SCREW, STEEL
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Part Number: XFF1907
Call for price
Product specifications
Attribute nameAttribute value
Material TypeSteel
Outside Diameter (O.D.)1.90 in.
Pipe Size or Tube Size (A)1 1/2" PIPE
Wt.Ea.0.8 lb.
Mount Holes3
Set Screw1
Base Diameter (B)4.688
Height (H)0.75 in.
Bolt Circle (D)3.75 in.
Wall Thickness7 Ga.
