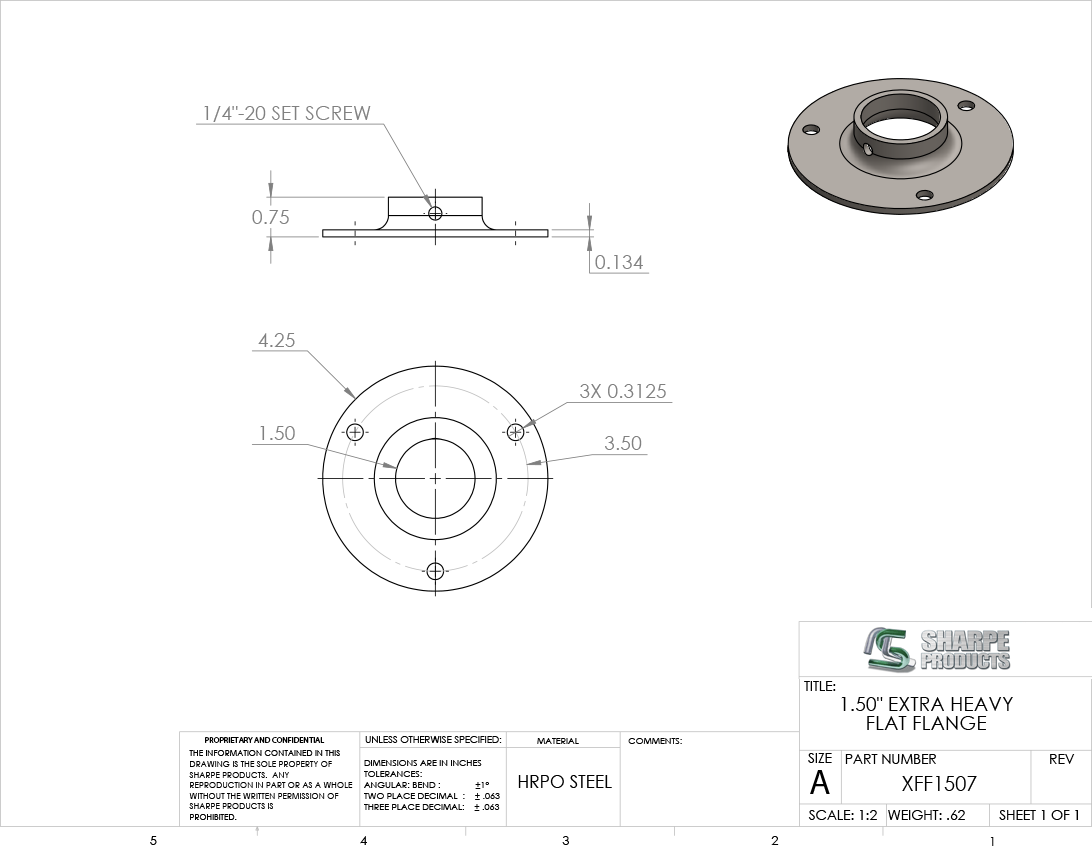

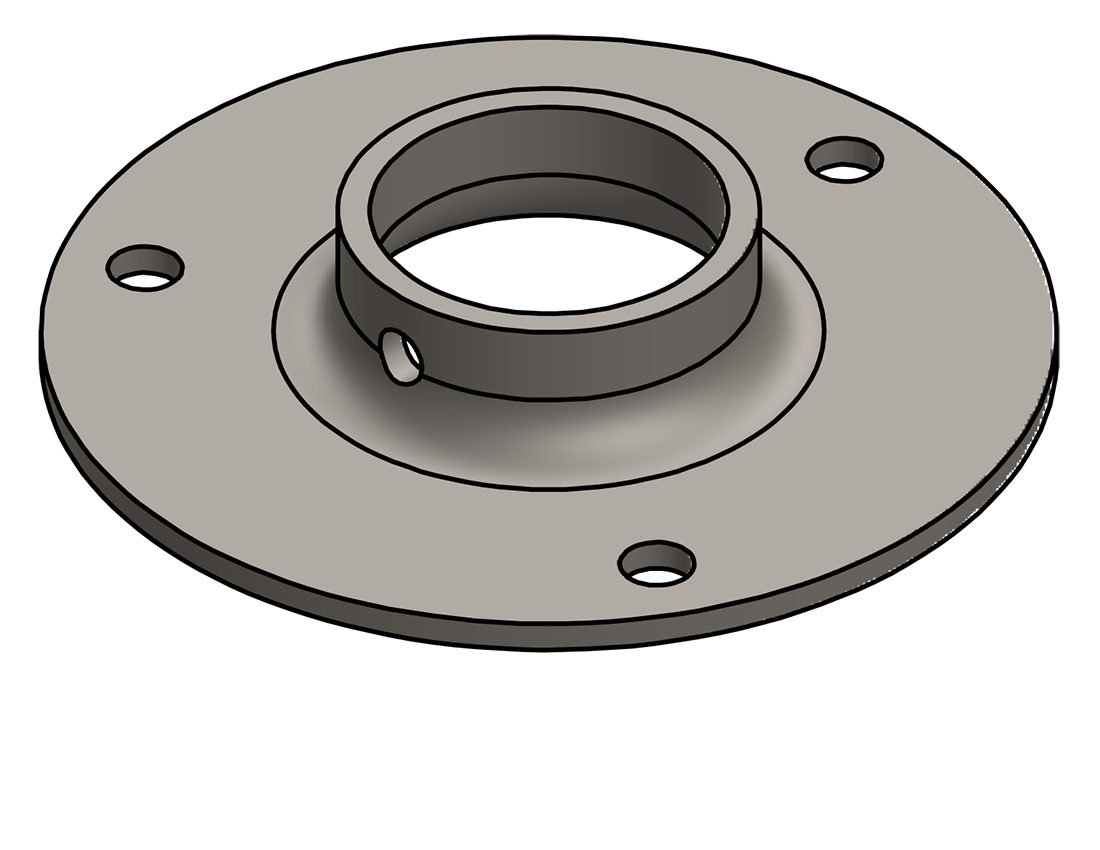

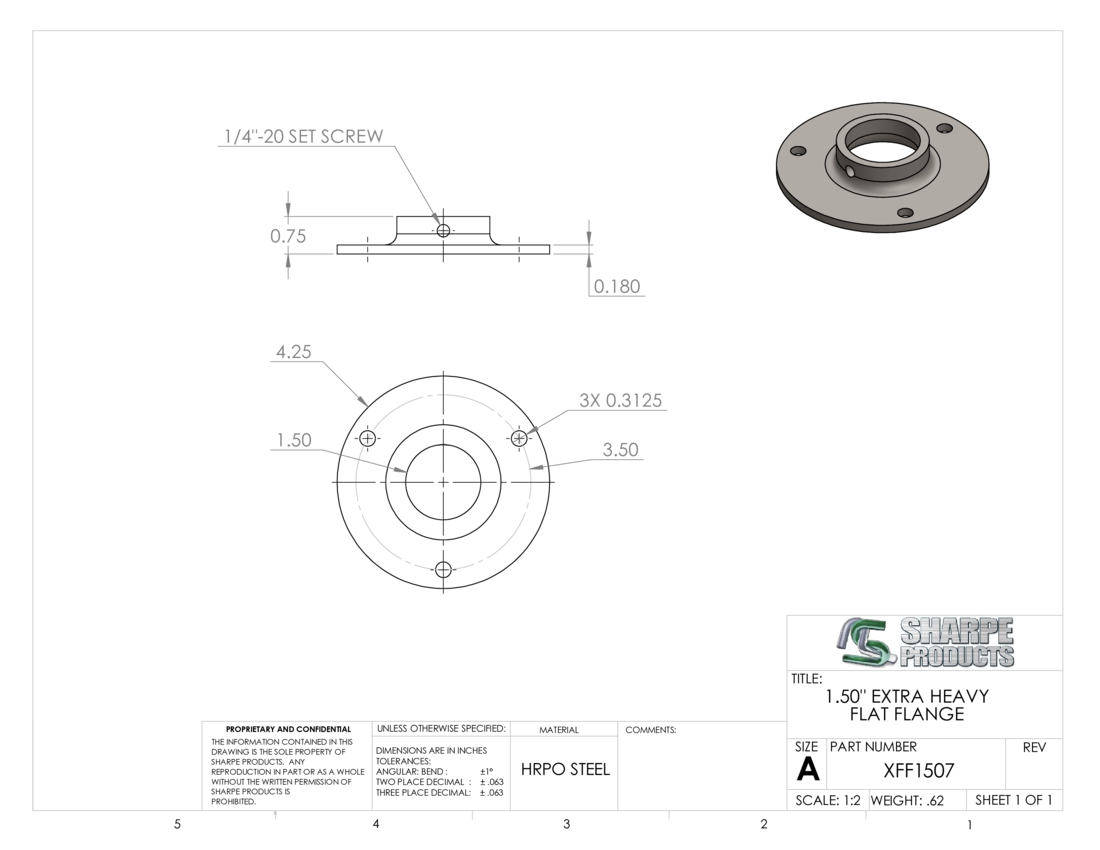

Picture of #XFF1507 - STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1507 - STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE Picture of #XFF1507 - STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

#XFF1507 - STEEL 1-1/2" TUBE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/2 O .D. W/ (3) HOLES W/ SET SCREW, STEEL
Availability: 1 in stock
Part Number: XFF1507
$21.58
PRICE BREAKS - The more you buy, the more you save
Quantity100+500+1000+
Price$19.42$18.34$17.26
Product specifications
Attribute nameAttribute value
Material TypeSteel
Outside Diameter (O.D.)1.50 in.
Pipe Size or Tube Size (A)1 1/2" TUBE
Wt.Ea.0.62 lb.
Mount Holes3
Set Screw1
Base Diameter (B)4.25
Height (H)0.75 in.
Bolt Circle (D)3.5 in.
Wall Thickness7 Ga.
