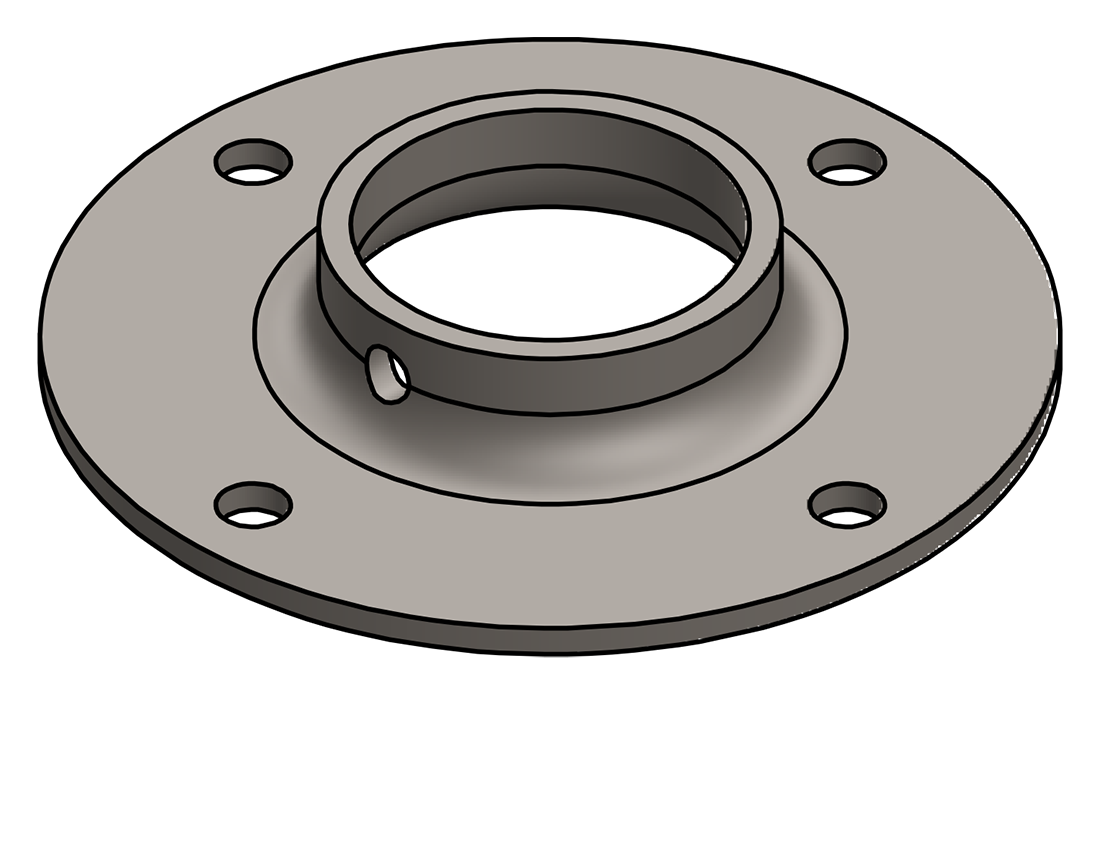

Picture of #XFF1668 - STEEL 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE
Picture of #XFF1668 - STEEL 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE Picture of #XFF1668 - STEEL 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE

#XFF1668 - STEEL 1-1/4" PIPE EXTRA HEAVY FLAT FLANGE

XTRA HVY FLAT FLANGE, 1 1/4 PIPE (1.66 O.D.) W/ (4) HOLES & SET SCREW, STEEL
Availability: 32 in stock
Part Number: XFF1668
Call for price
Product specifications
Attribute nameAttribute value
Material TypeSteel
Outside Diameter (O.D.)1.66 in.
Pipe Size or Tube Size (A)1 1/4" PIPE
Wt.Ea.0.62 lb.
Mount Holes4
Set Screw1
Base Diameter (B)4.125
Height (H)0.688 in.
Bolt Circle (D)3.25 in.
Wall Thickness7 Ga.
